This page applies to Harlequin v13.1r0 and later; both Harlequin Core and Harlequin MultiRIP.
This section describes the available spot functions with their PostScript-language names, and their index number and comments on PDF usage where appropriate.
A PDF: entry shows where the spot function has a different name or availability to that in the PostScript language. These examples show the possible entries:
|
|
shows that a PDF job specifying |
|
|
shows that a PDF job cannot access the labeled spot function. |
|
|
Indicates that this is a spot function provided in addition to those defined in [PDF1.2]. |
Names marked as Not available have a related name ending in Adobe. These are provided where there is a Harlequin spot function with the same name as, but a different appearance from, the spot function as used from PDF jobs. This is done so that PDF spot functions have their correct representation.
An Index: entry shows the (deprecated) index value for the screen, for use with the OverrideSpotFunction system parameter. "Index: 5" shows that you can access the spot function using index 5.
|
Name (and comments) |

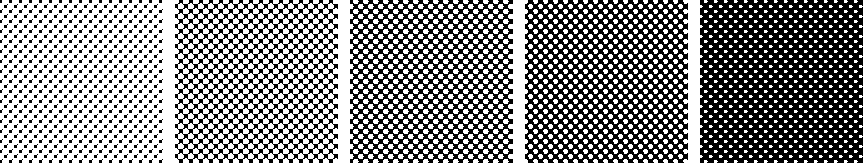

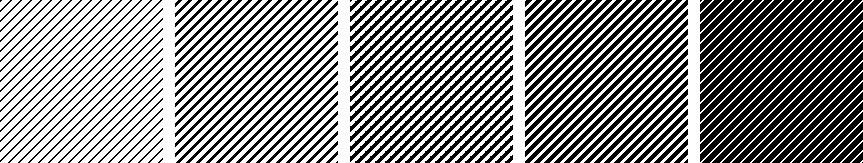

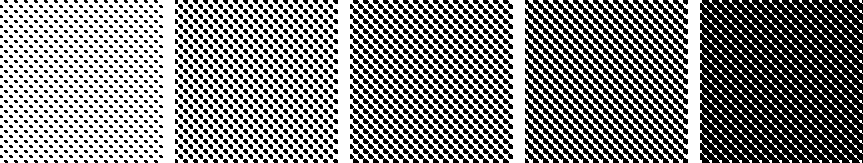

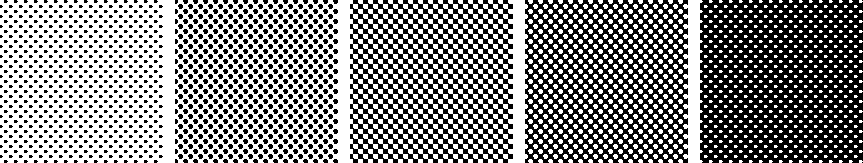

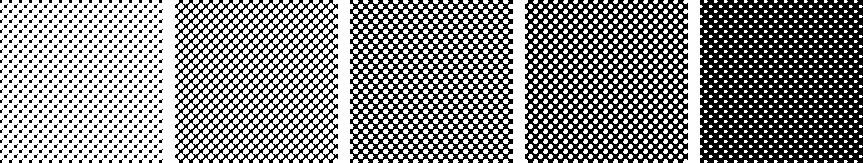

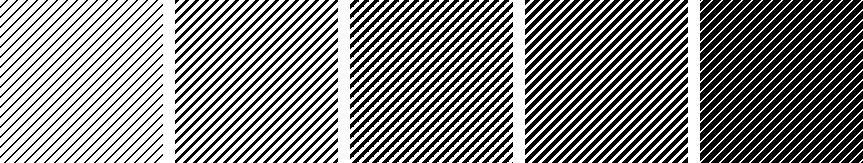

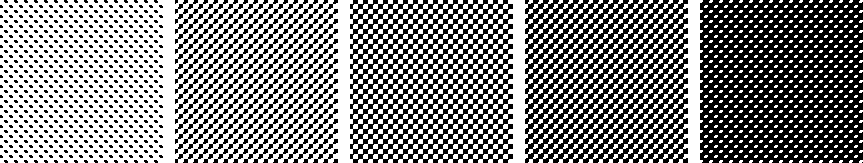

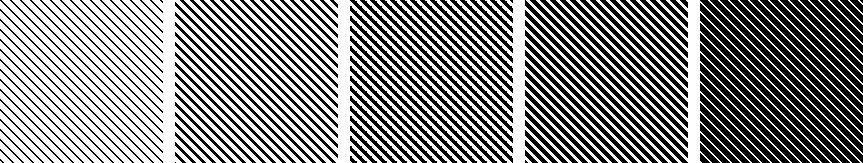

Samples for: 20%, 40%, 50%, 60%, and 80% |
|

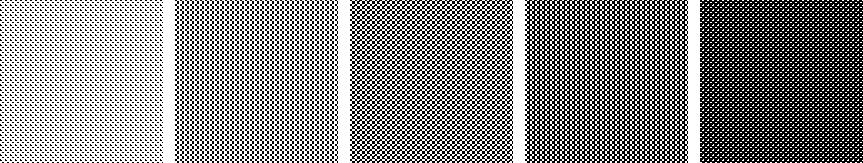

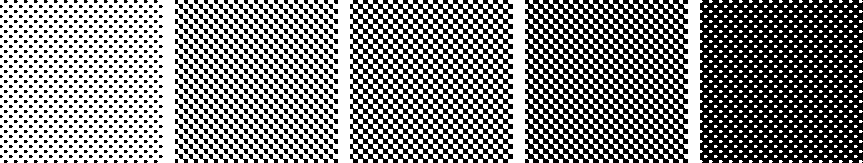

CosineDot |
|
|

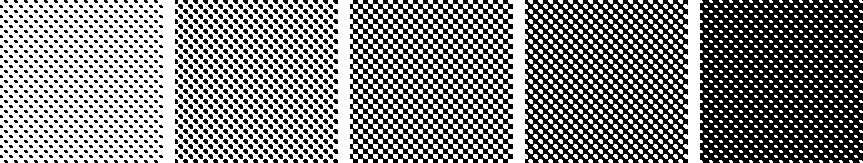

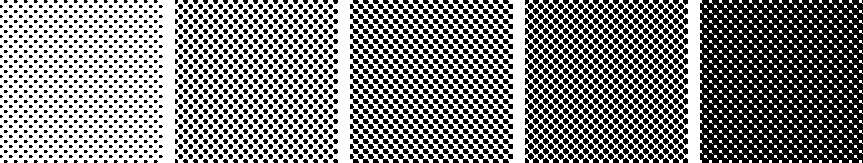

Cross |
|
|

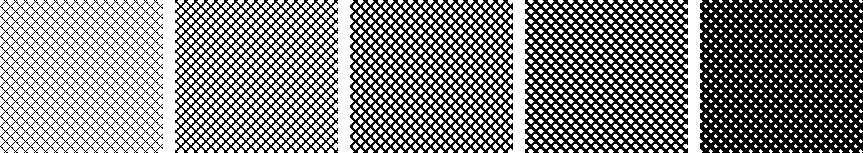

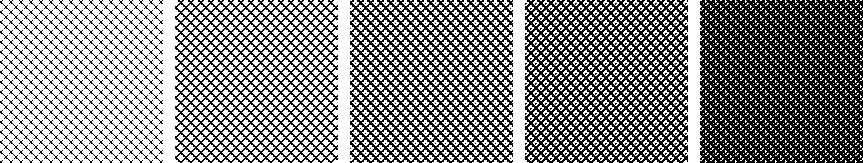

Diamond |
|
|

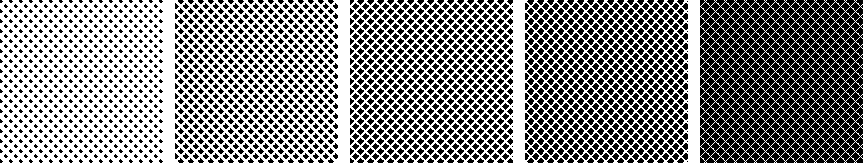

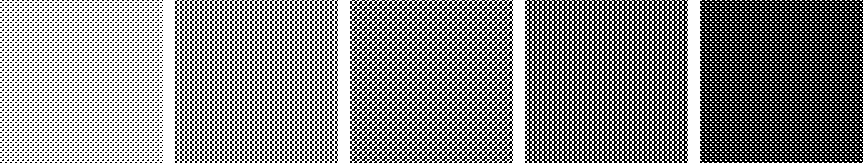

Double |
|
|

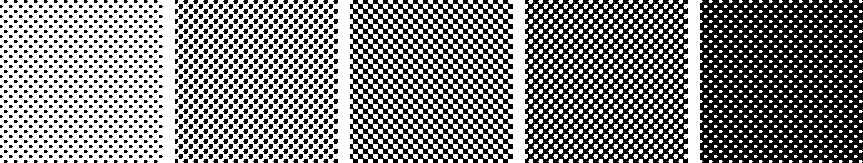

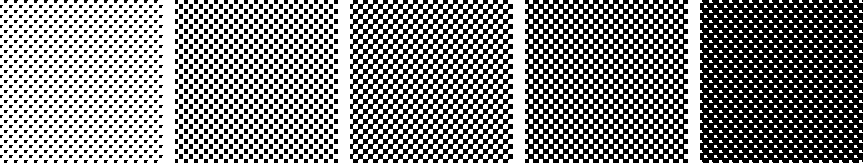

DoubleDot |
|
|

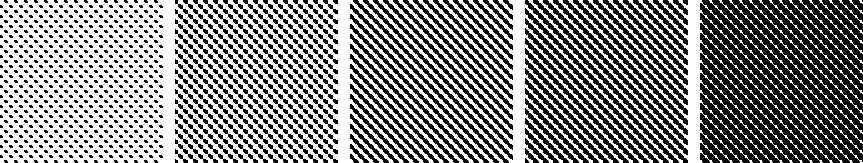

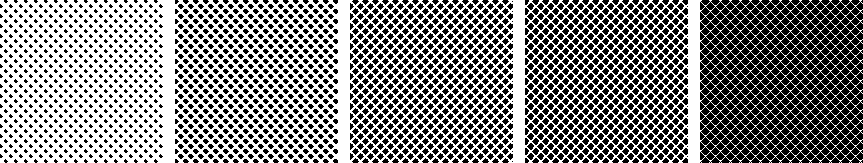

Ellipse |
|
|

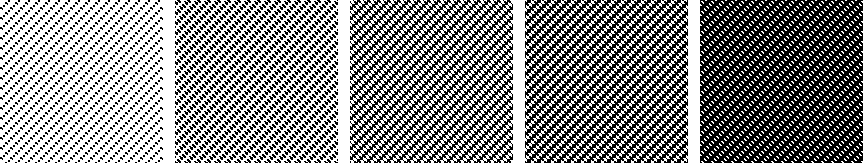

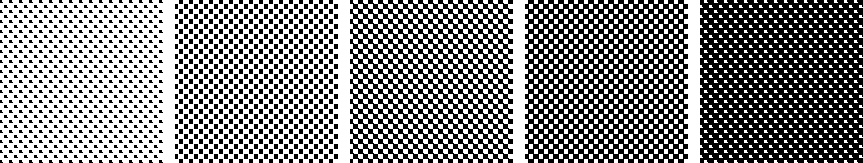

EllipseA |
|
|

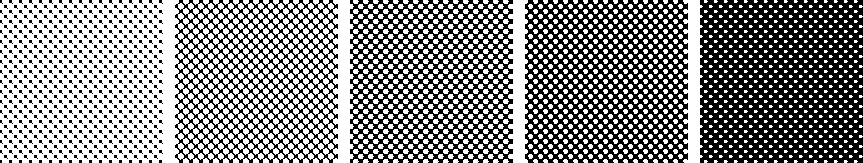

EllipseB |
|
|
EllipseB2
|
|
|
EllipseC
|
|
|
EllipseCAdobe
|
|
|
Elliptical1
|
|
|
Elliptical2 Index: 3 |
|
|
EllipticalP |
|
|
EllipticalQ1
|
|
|
EllipticalQ2
|
|
|
Euclidean
|
|
|
InvertedDouble |
|
|
InvertedDoubleDot |
|
|
InvertedEllipseA |
|
|
InvertedEllipseB
|
|
|
InvertedEllipseB2
|
|
|
InvertedEllipseC |
|
|
InvertedSimpleDot |
|
|
Line
|
|
|
Line90
|
|
|
LineAdobe
|
|
|
LineX |
|
|
LineY |
|
|
Rhomboid
|
|
|
RhomboidAdobe
|
|
|
Round
|
|
|
Square |
|
|
Square1
|
|
|
Square2
|
|
|
HDS-A
|
|
|
HDS-B
|
|
|
HDS-C
|
|
|
HDS-D
|
|
|
HDS-E
|
|
