Overview

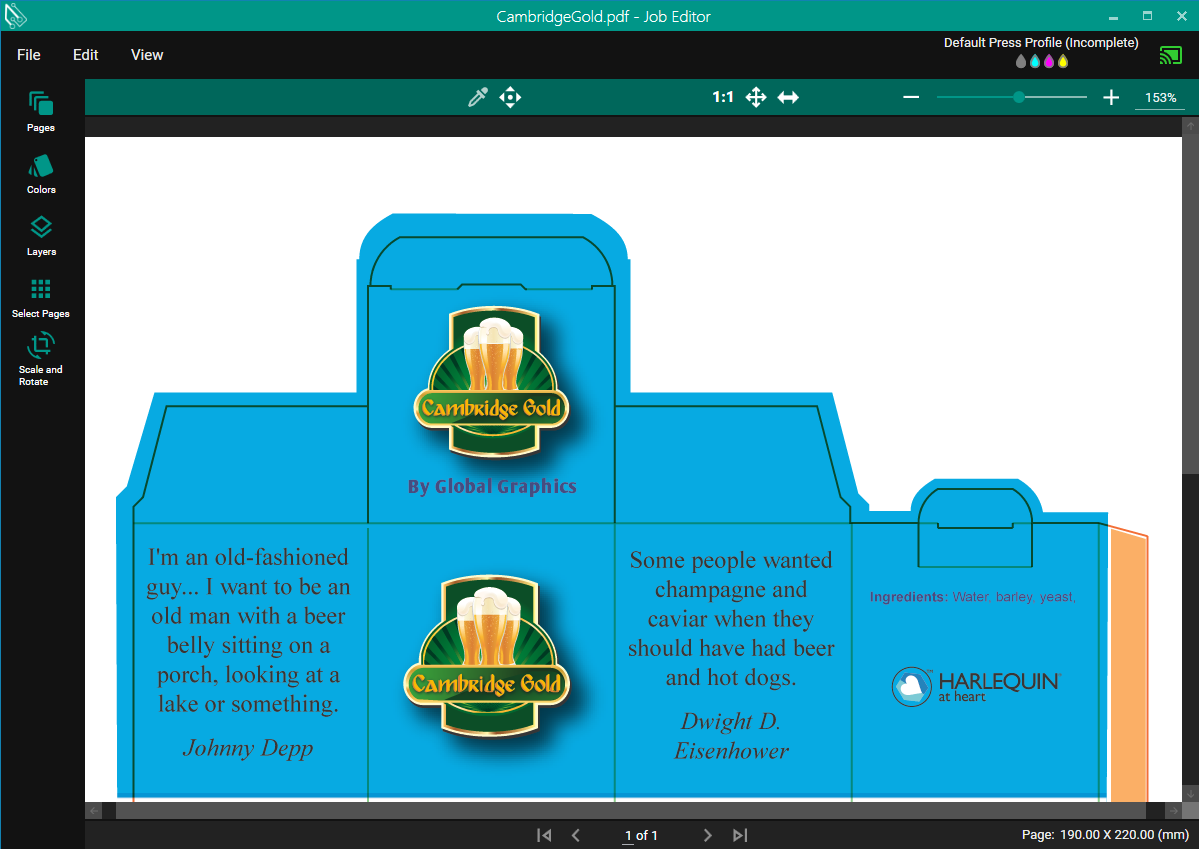

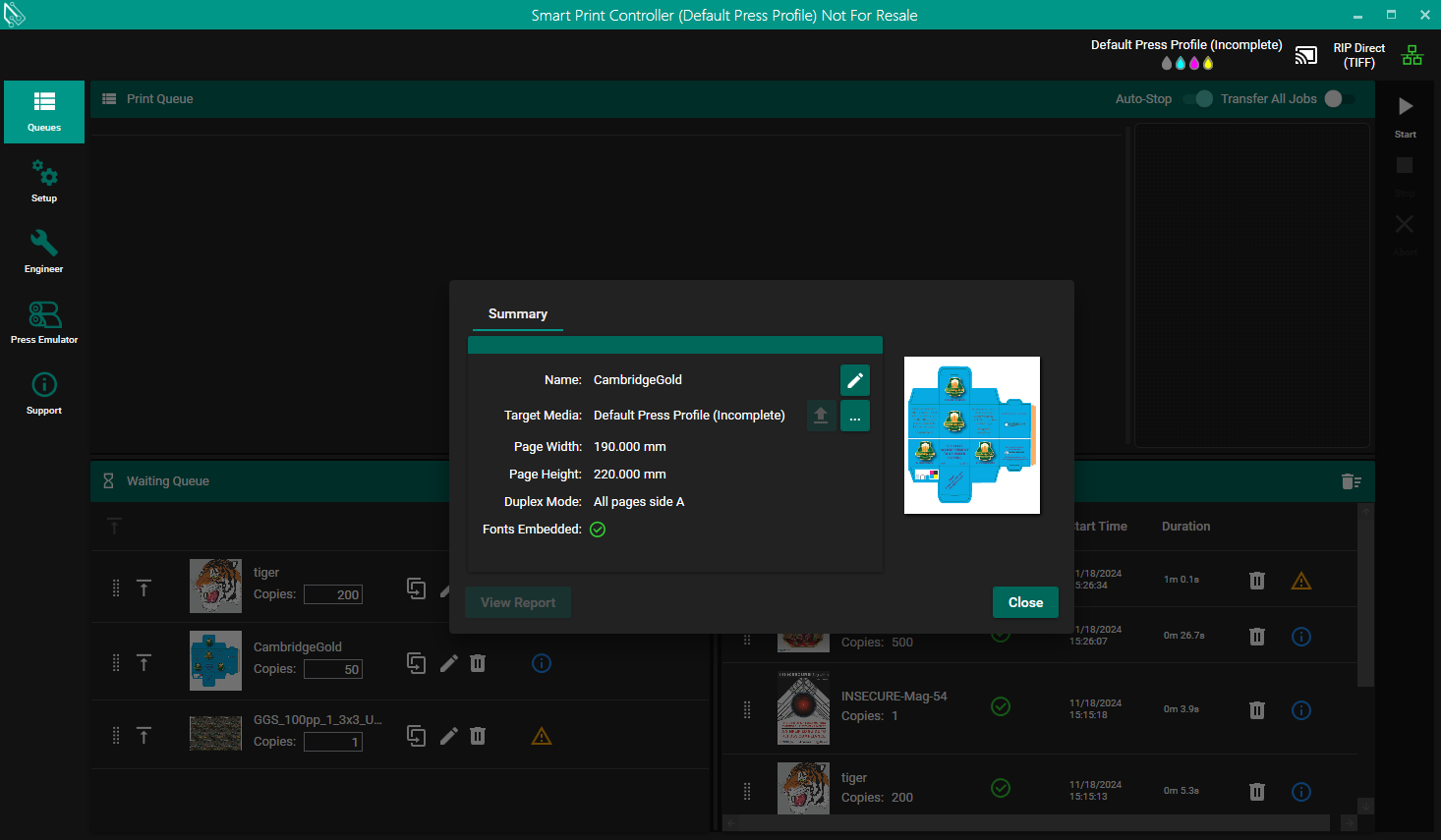

To open the Job Editor, click the pencil icon next to the job. This opens a window showing the selected job.
NOTE:
If a suitable ICC output profile is present for the active Media, it is used in the Job Editor.
NOTE:
All editing features are disabled when RIP Ahead jobs are loaded.
As shown above, there are several controls for interacting with the page.
The first button selects the active tool, either the Eyedropper tool or the Panning tool.

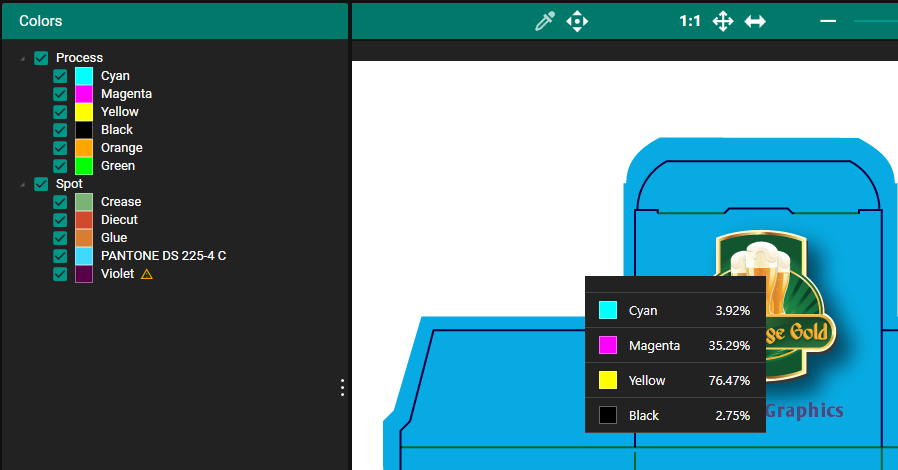

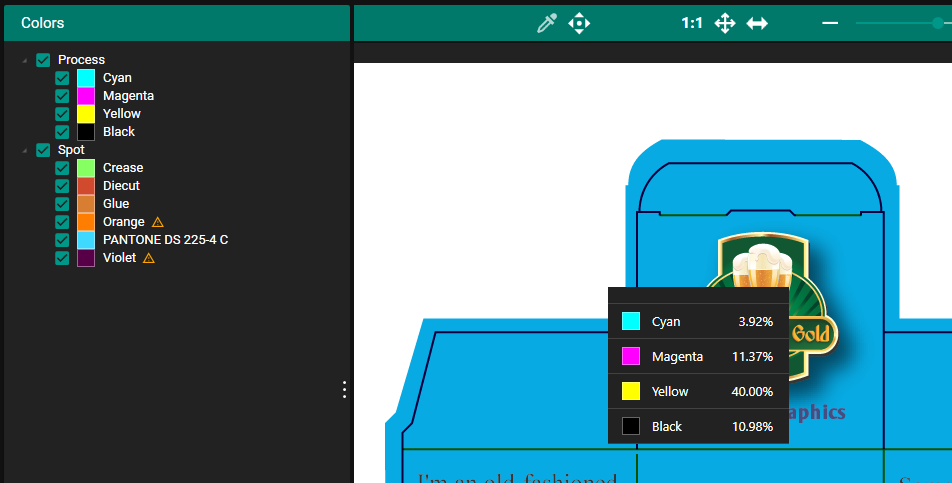

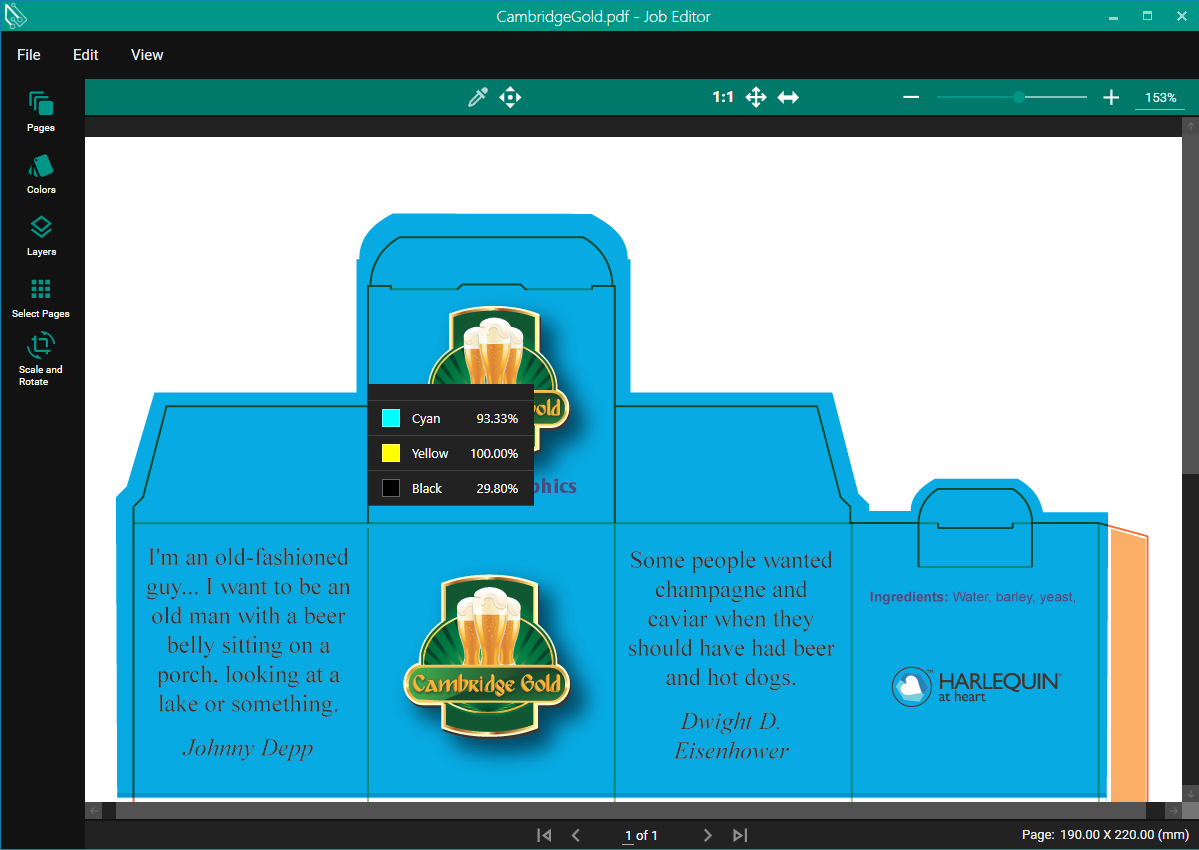

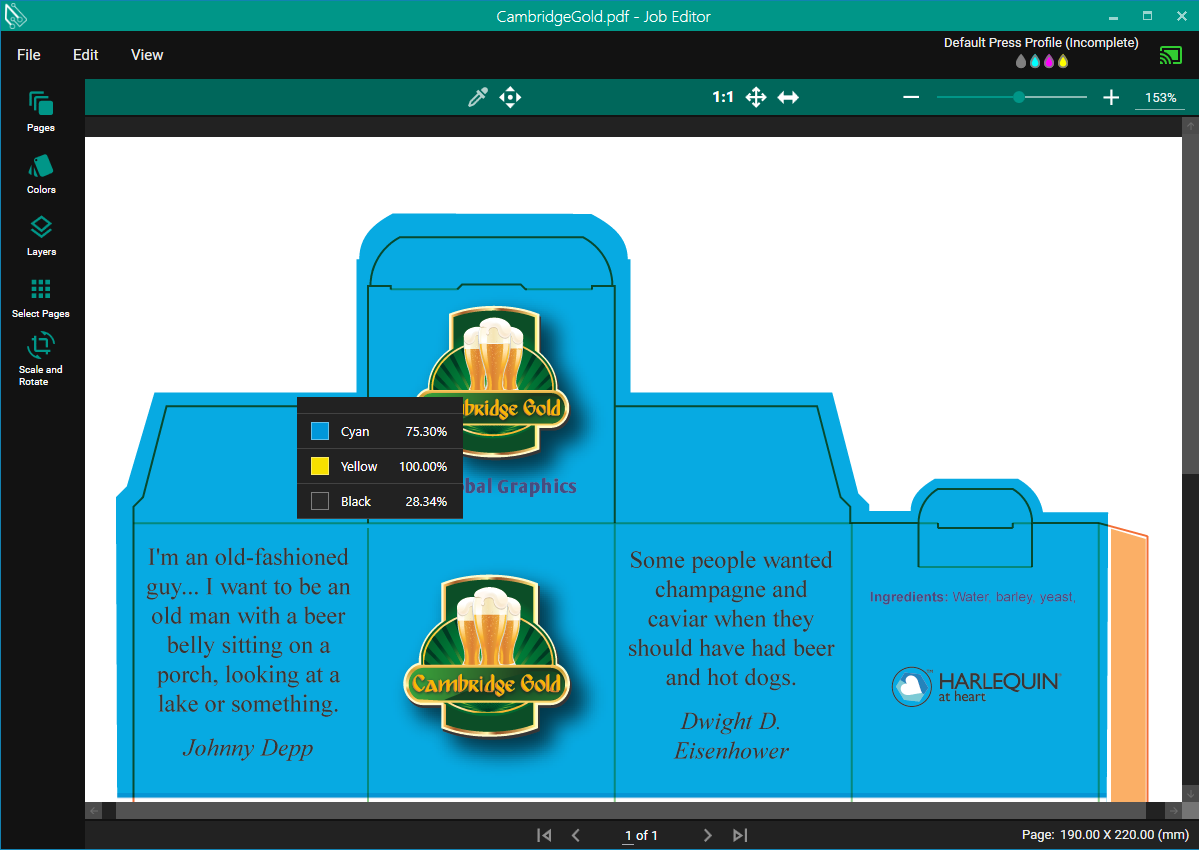

The Eyedropper tool displays the color values of the pixel selected by clicking on the page.
Only colors with positive values are displayed.
If the color is a spot color, a Copy to Clipboard button is shown. This allows the color to be pasted into the custom color dialog.
The Output Preview feature in the Job Editor provides a visual preview similar to Adobe Acrobat's Output Preview. For N-channel ICC profiles, such as CMYKOV, it treats the additional process colors as standard process colors while preserving the behavior of spot colors unless they are manually converted. Rendering changes according to the selected media and ICC profile. The Eyedropper tool also displays values for the selected profile, showing six colors for a 6-color ICC profile and four colors for a 4-color ICC profile. This helps show how different ICC profiles and media affect the document.
An indicator in the top right shows the active inks in the job's media. If the active inks have not been saved to the media, this indicator shows the colors from the output ICC profile instead.
CMYKOV:
CMYK:
The Panning tool moves the view of the page when zoomed in. Click and drag on the page to pan.
The following controls are tied to page zoom.
The Actual Size button changes the zoom level to 100%.
The Fit to Page button changes the zoom level so the whole page is visible.
The Fit to Width button changes the zoom level so the full width of the page is visible.
The Zoom in button increases the zoom level up to a maximum of 6400%.
The Zoom out button decreases the zoom level down to a minimum of 10%.
The Zoom slider changes the zoom level by dragging and displays the zoom level as a percentage.
Select Pages

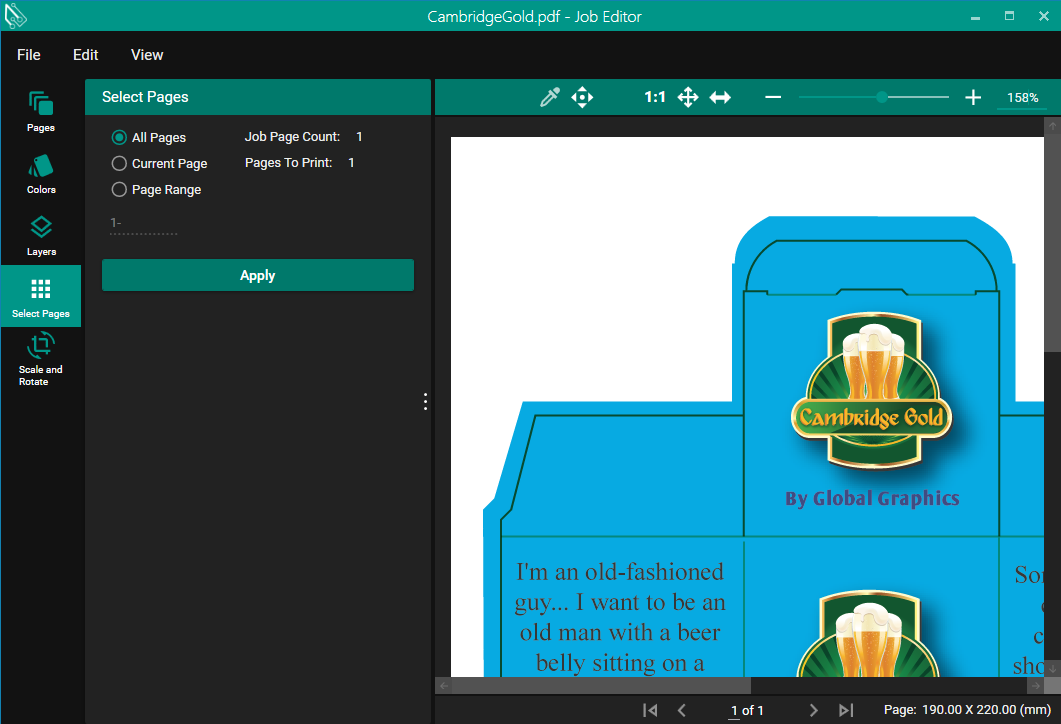

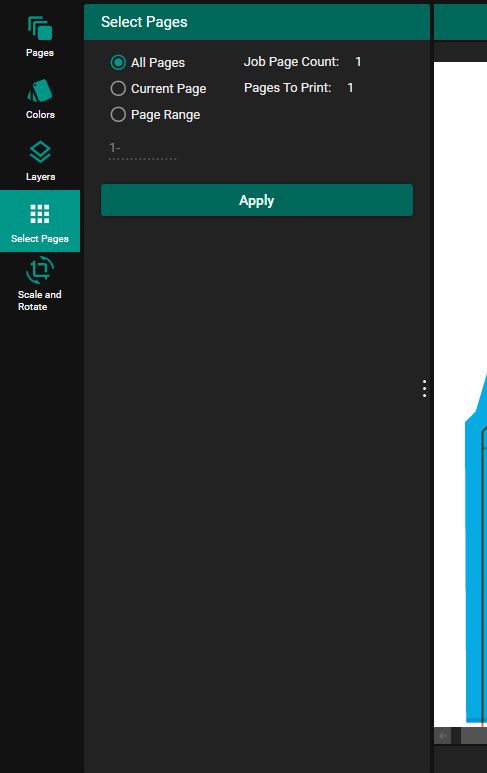

As shown above, you can use the Job Editor to specify a Page Range.
WARNING:
You must press Apply if you change the page range, and you must save the file before exiting the application. Otherwise, the changes will be lost.
Page Selection
This menu allows you to choose the pages that print when this PDF goes through a Print Run. There are three options for Page Selection:
-
All Pages prints all pages in the PDF, in their original order. This is the default mode.
-
Current Page prints only the page that the Job Editor is displaying. In the screenshot above, it would print page 1 only.
-
Page Range allows you to type the pages that you want to print in the text box below.
Page Ranges
Three types of page range are accepted:
-
1 prints page 1 only.
-
2- prints from page 2 to the last page of the document.
-
3-7 prints all pages between 3 and 7 (inclusive).
These can be combined with commas. For example, the Page Range "1-3,5" selects pages 1, 2, 3, and 5 in that order.
You can specify the same page number multiple times. For example, the Page Range "1,1,1,1" selects page 1 four times, and the Page Range "1-,1-,1-" prints the whole document three times in a row.

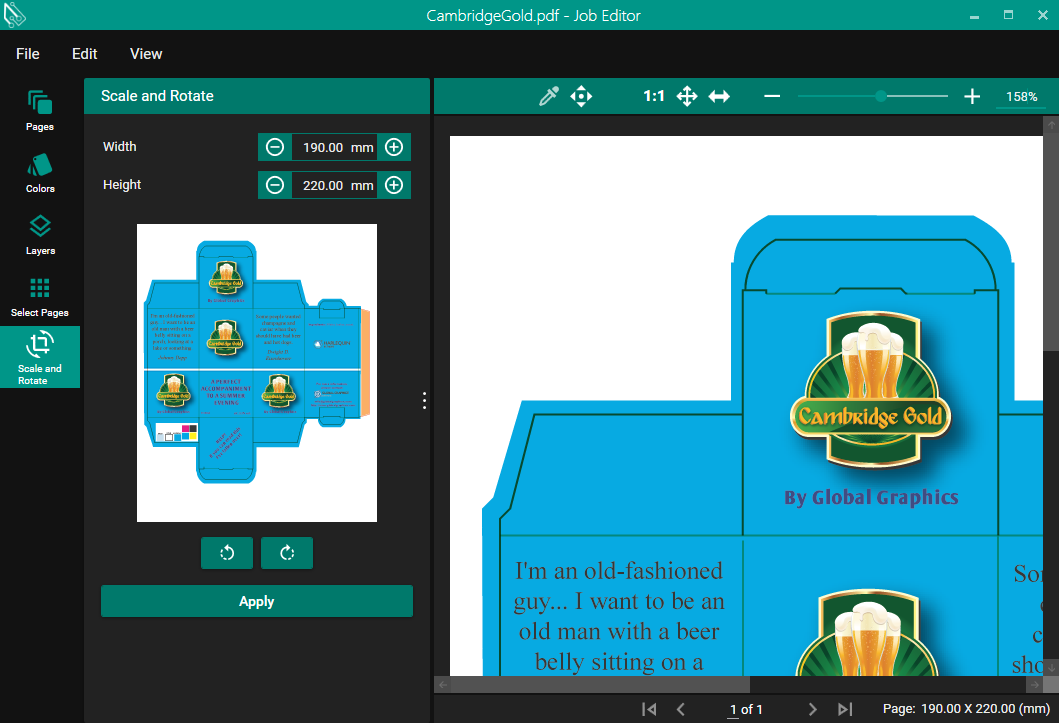

Scale and Rotate
These controls allow you to set a new document width and height. The document contents are scaled at the same time, preserving the position of all elements in the job.
Valid values range from 10 times smaller than the current dimension to 2 times larger than the current dimension. The value must not exceed the media width, after accounting for document rotation and the Print Bars Horizontal To Image setting in the Smart Device Configuration.
Document Rotation

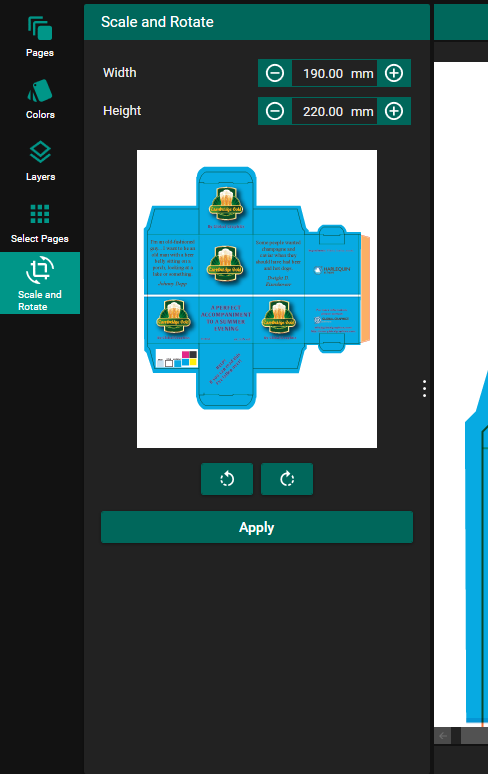

The two buttons below the document preview rotate the preview by 90 degrees clockwise or anticlockwise. When you are happy with the orientation, press Apply to commit that rotation to the real job.
WARNING:
Pressing Apply after changing the Document Rotation or either scaling option requires the document to be saved automatically. A confirmation dialog appears so you can cancel the change.

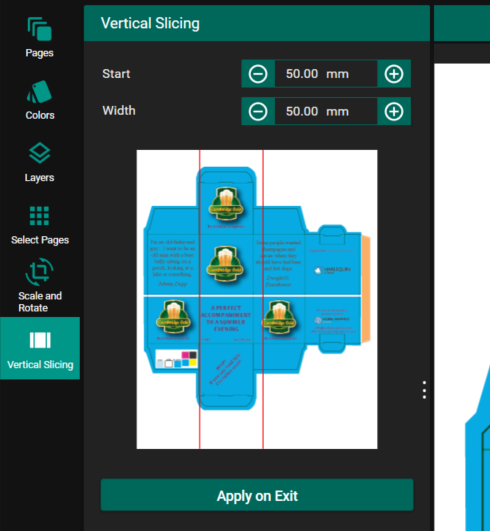

Vertical Slicing
The Vertical Slicing feature allows you to define a specific vertical section of a document to print. By setting the Start and Width positions, you can isolate a precise vertical slice of the page. Only the content within the defined slice will be included in the job.
WARNING:
You must press Apply on Exit if you set a vertical slice, and you must save the file before exiting the application. Otherwise, the changes will be lost.
Tone Curves
When AllowToneCurveEditing is enabled, the Tone Curves pane allows you to adjust the input and output response curve for each process color in the job. You can edit, add, or remove control points, reset a curve to linear, and import or export curve data. Changes are stored in the PDF and reflected in its thumbnails. The adjusted result is visible in the Screen and Proofing views; the normal PDF view will not have any changes if the tine curves are changed.
Spot Color Editor

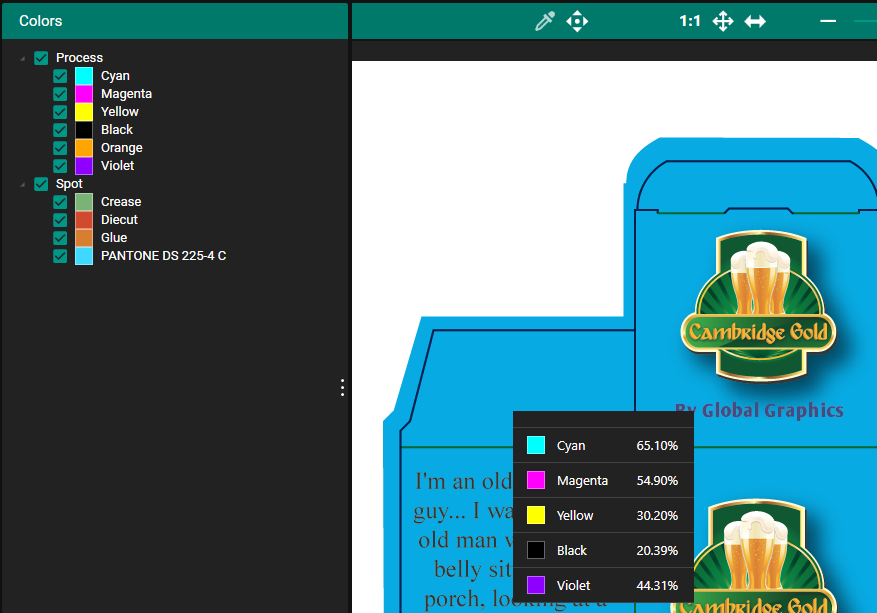

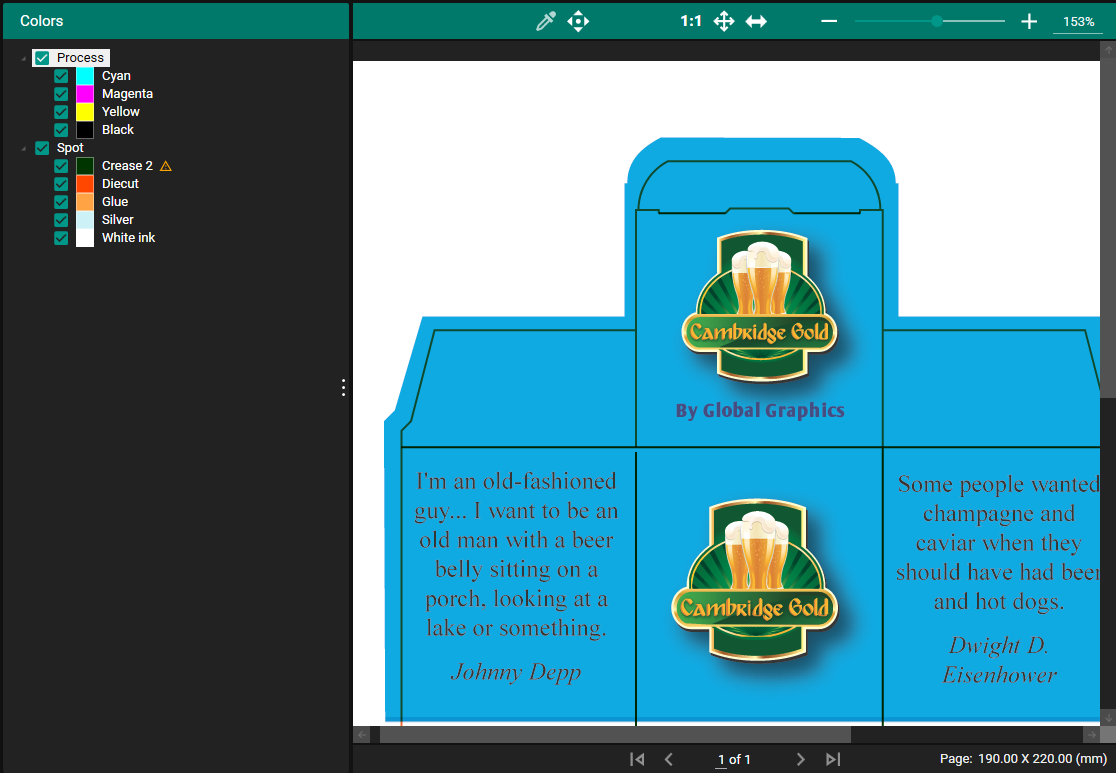

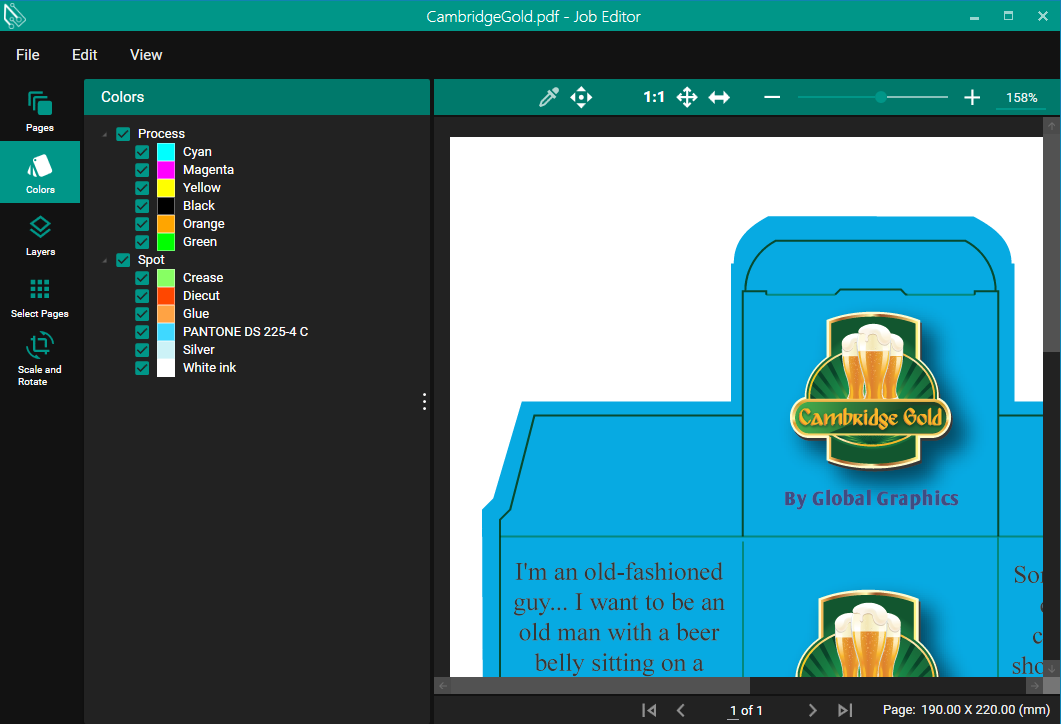

The Color tab shows the colors specified in the PDF job, including process colors and spot colors. Supported process color sets include CMYK, CMYKOV, and CMYKOG.
CMYK:
CMYKOV:
CMYKOG:

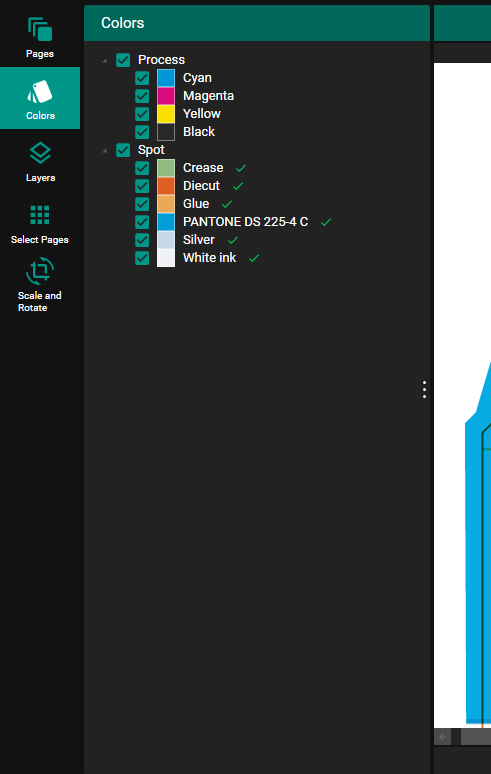

Spot colors may include technical separations, metallic inks, white backing, and traditional spot colors such as Pantones.
If a color is out of gamut, a warning triangle is displayed. Hover over the triangle to see the Delta E, or color difference, value.

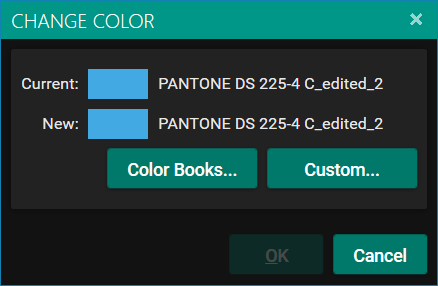

If you select a color, you can choose Rename Color, Change Color, Convert to Process Color, or Replace with In Gamut Color.
Renamed colors are saved in the Custom Colors library.
If the media associated with the job has a Total Ink Limit profile, a warning triangle appears when the sum of the process colors exceeds the Total Ink Limit.
If AllowOverinkingInJobEditor is disabled in OPC UA SPCSet.Settings, the OK button is disabled when this warning appears. Otherwise, it remains enabled.
Thumbnail

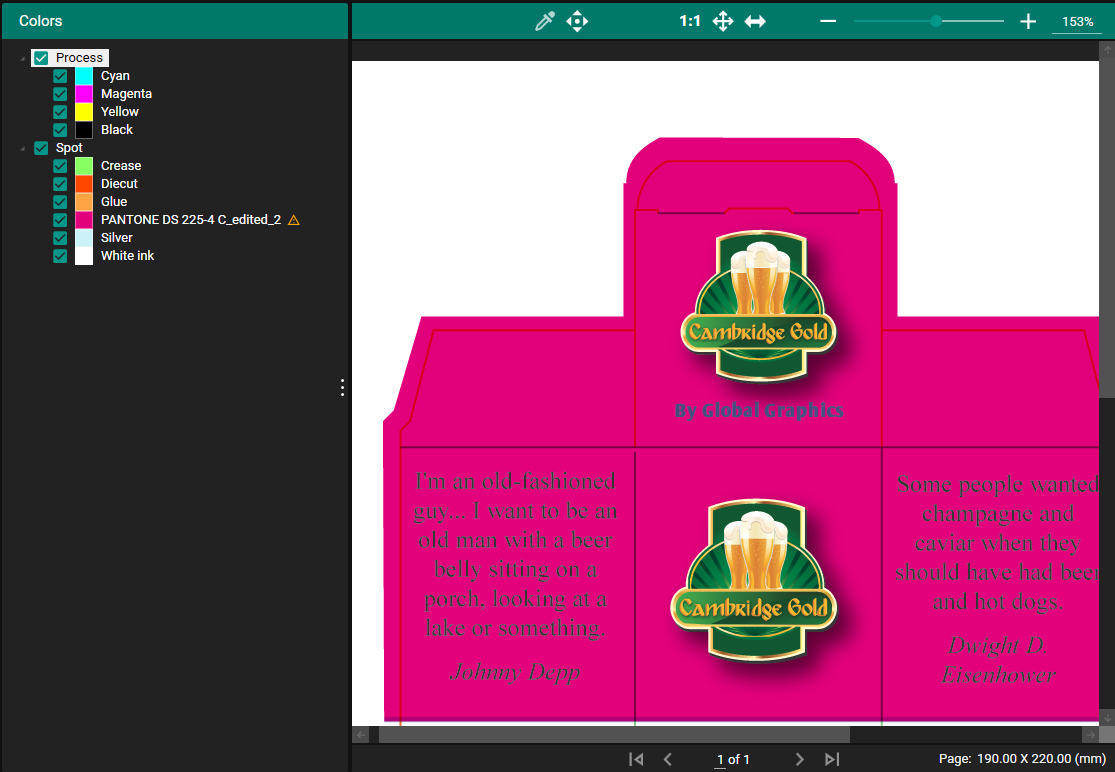

The thumbnail is updated to reflect any color changes made through a new preprocessing step, which is capable of replacing the values of spot colors in the job found in the TCB inside the SMD.

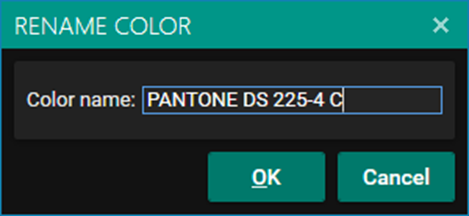

Rename Color

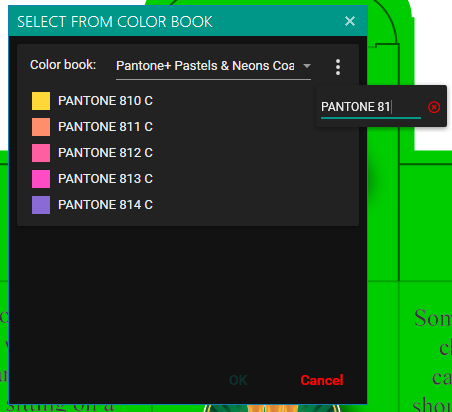

Select from Color Book
You can choose from the installed library.
Select a specific ink from a swatch library using the search option.

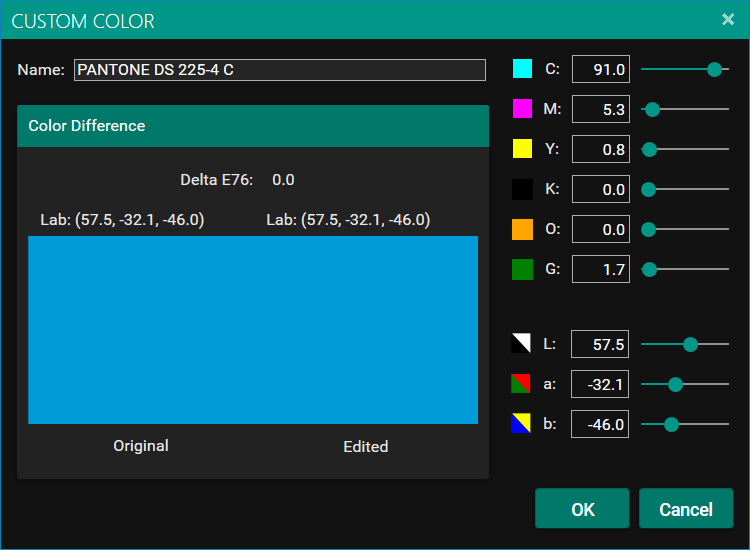

Edit Spot Color

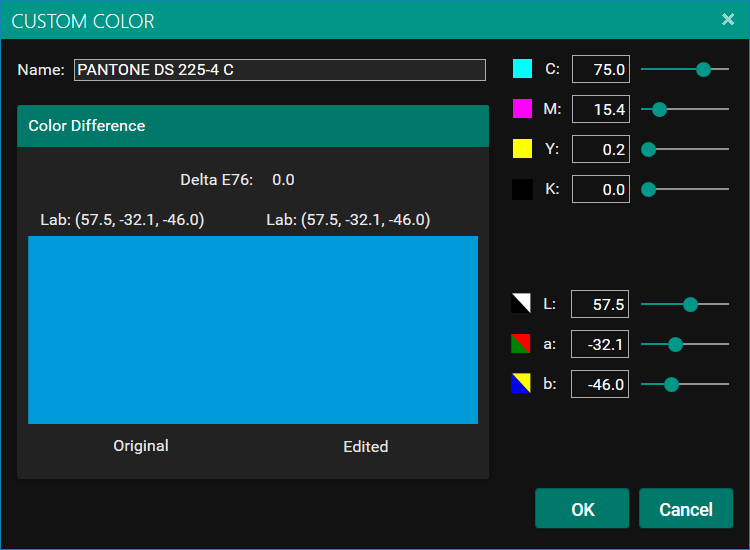

Edit the color manually:

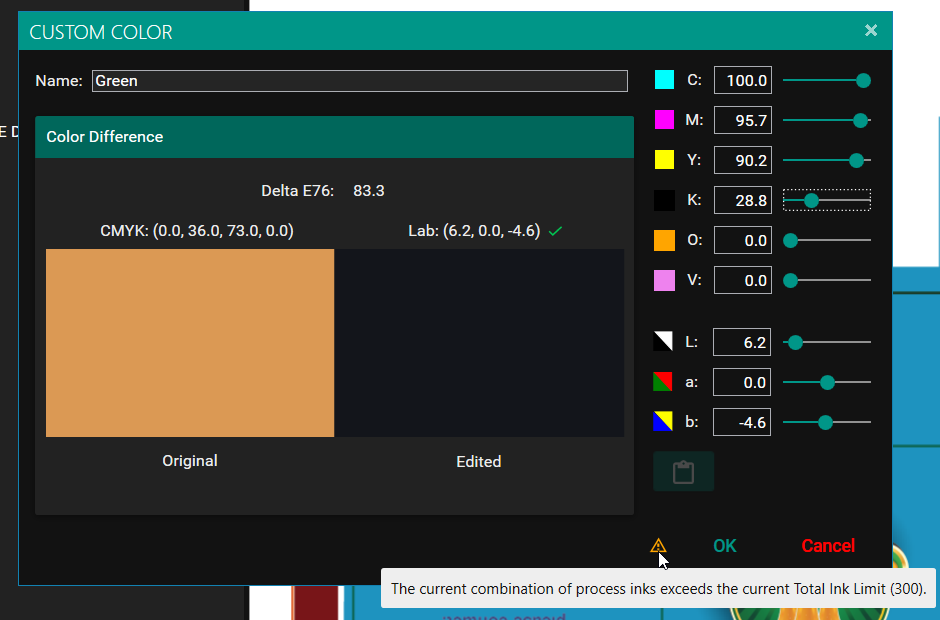

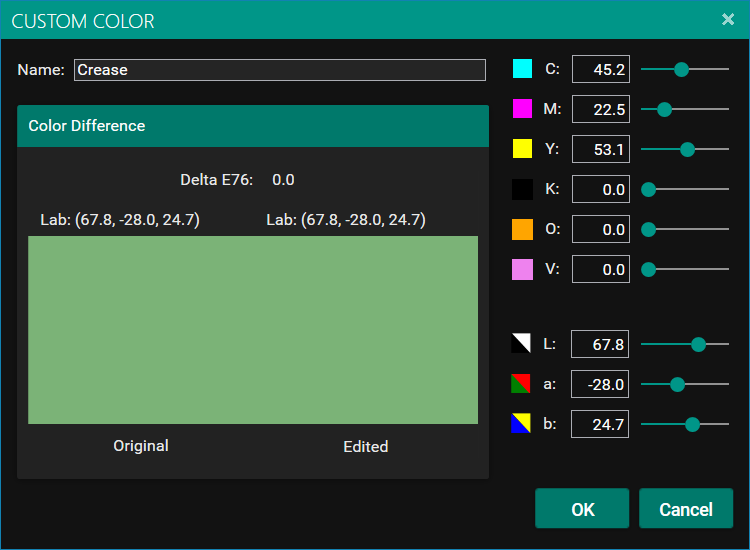

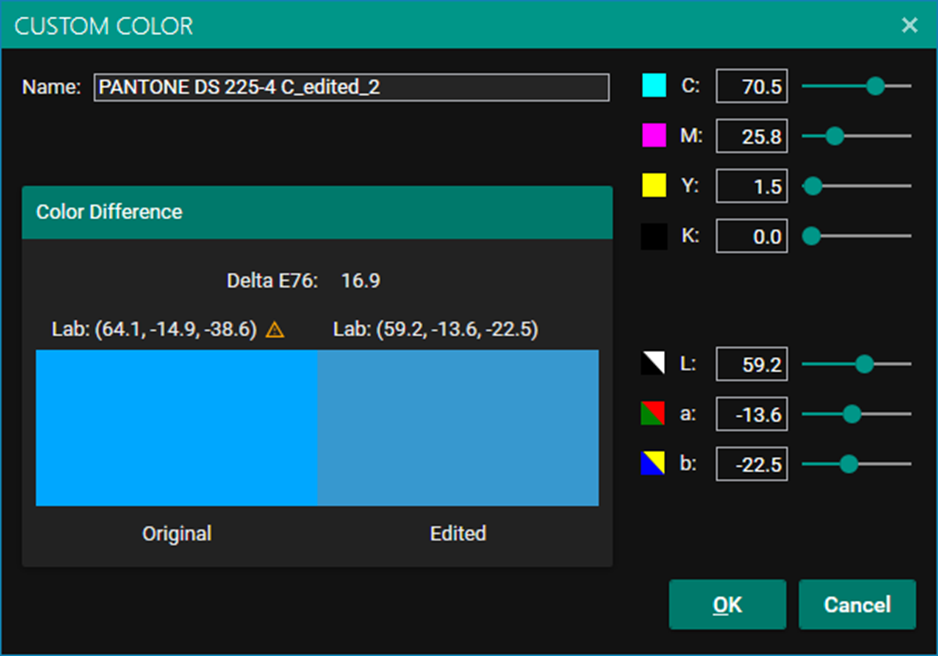

This shows the mapped in-gamut color and the Delta E color difference. You can manually change the Lab value or the CMYK sliders to change the color. CMYKOV sliders are shown if you have a suitable ECG profile.
Save

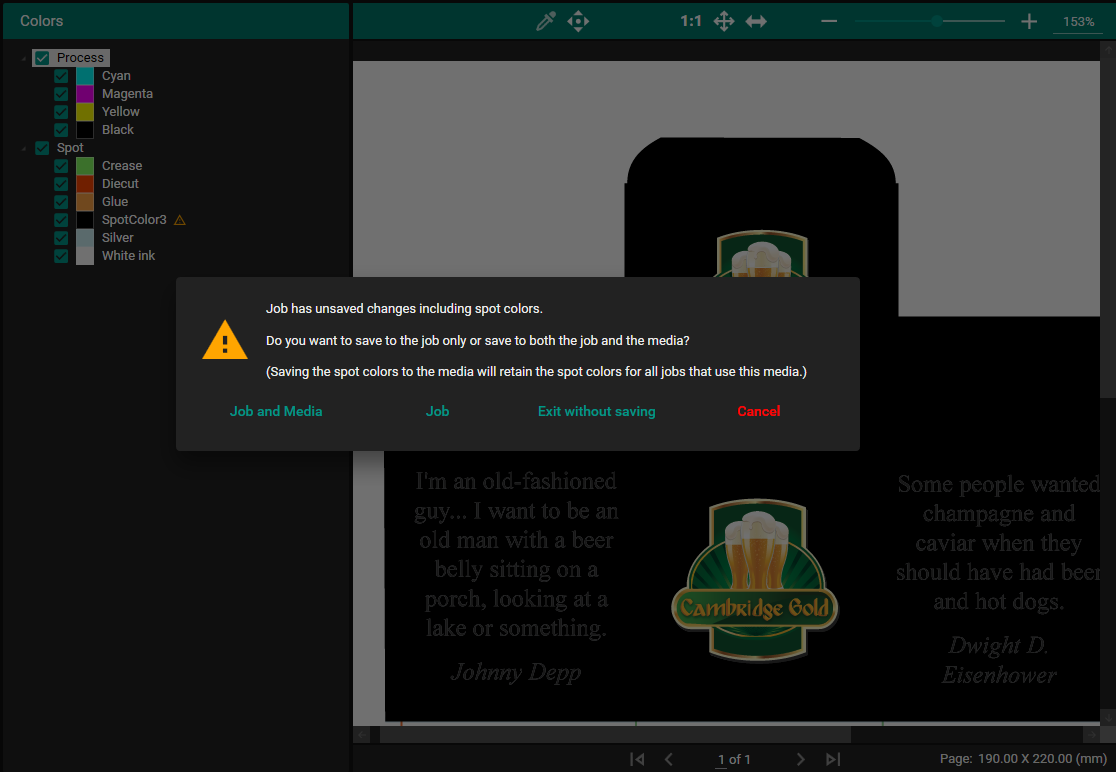

When you exit the Job Editor after modifying a spot color, you'll receive a warning message:
-
Job and Media: Save the edited spot, assign the job, and save it to the Spot Overrides in the Media (SMD). Saving the spot colors to the media preserves them for all jobs using this media.
-
Job: Simply save the spot color or job settings to the "Job."
-
Exit without saving: Close the Job Editor without saving any changes.
-
Cancel: Abort the exit process and return to the Job Editor.

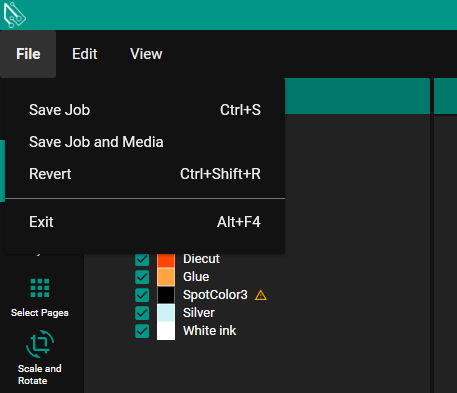

The above options can also be accessed from the File menu.
Log

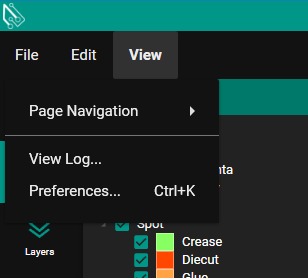

The log file can be accessed from the View menu.
Preferences

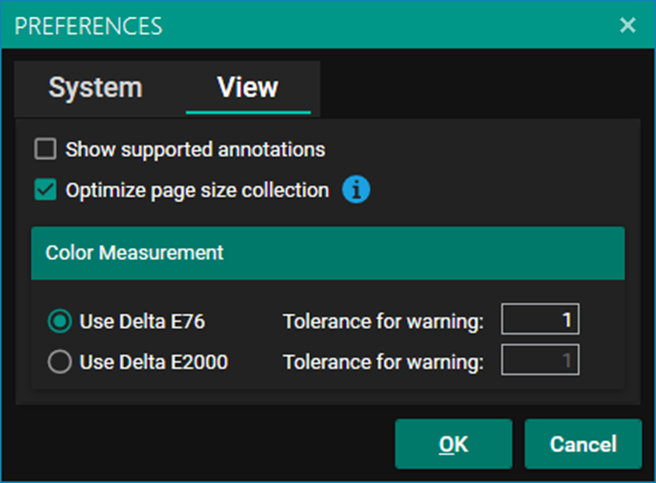

You can change your preferences from the View menu. Here you can choose whether to calculate Delta E using the CIE 1976 standard or the CIE 2000 standard. You can also choose the tolerance used to trigger out-of-gamut warnings:

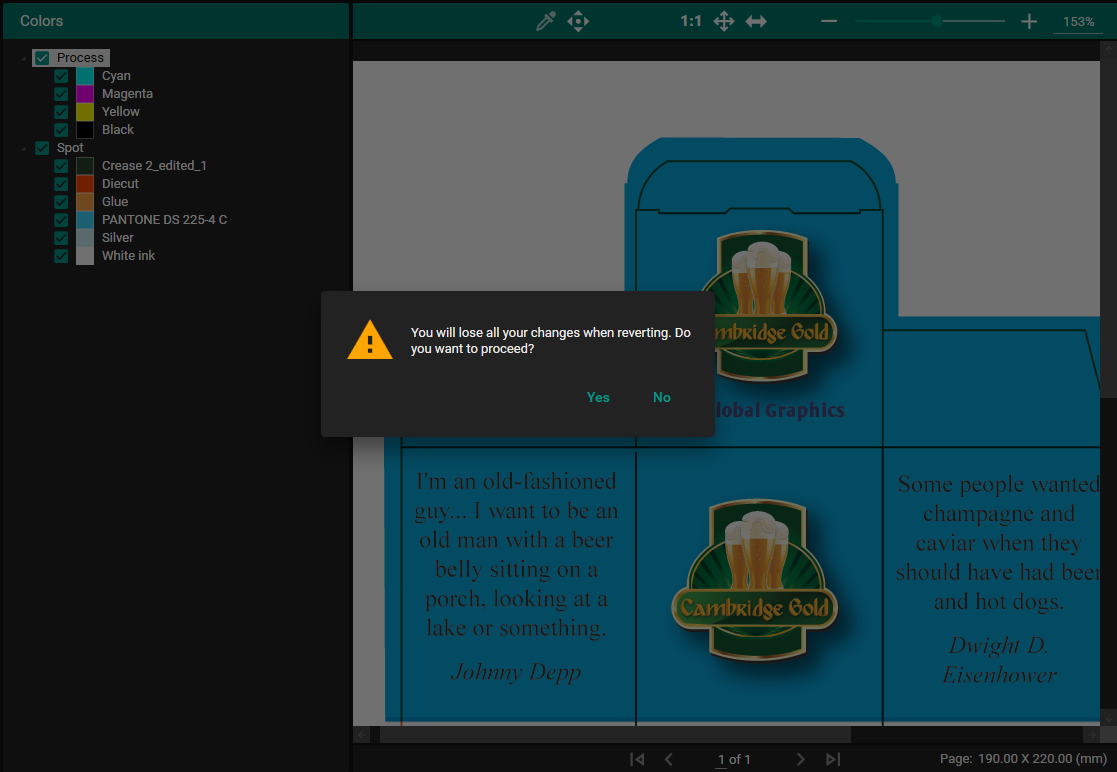

You can revert all changes.
Layers

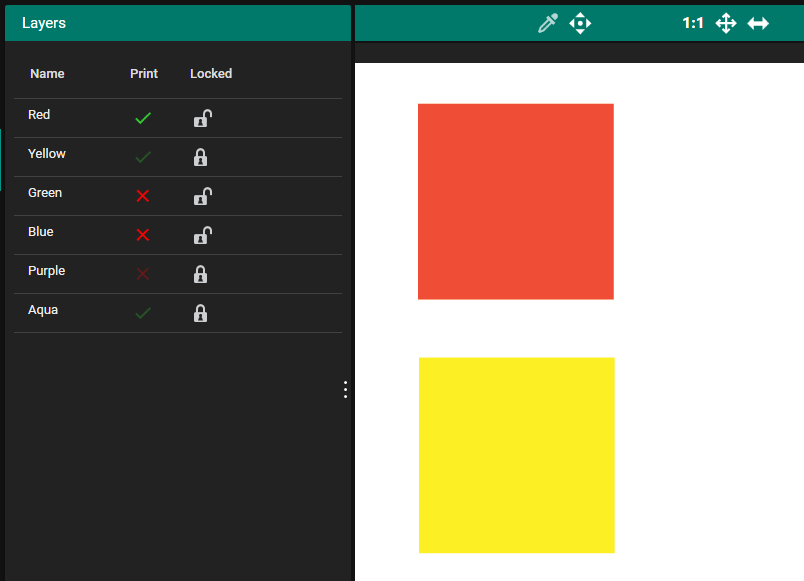

All layers in a PDF are visible in the Layers pane. Each layer has two available interactions:
-
Print
-
This setting determines whether a layer prints when RIPped. As a visual aid, the job preview updates to show or hide the layer's contents when this setting changes.
-
-
Locked
-
This setting determines whether the Print setting can be changed.
-
Spot Variations Chart
This allows the user to modify a spot color efficiently using a technique called "ring arounds."
This involves printing a reference patch of the original spot color along with adjacent patches that incorporate variations in cyan and magenta (or yellow) process color inks to achieve the desired ink mix.
The workflow starts by printing the original spot color and then introducing a small amount of cyan, magenta, or yellow to create the desired ink mix. The technician compares this patch with the reference they are attempting to match. Once satisfied with the match, they adjust the spot color to reflect the CMYK values for the selected patch.
The user can add or subtract up to three inks from an extended gamut ink set, excluding black.
