Introduction

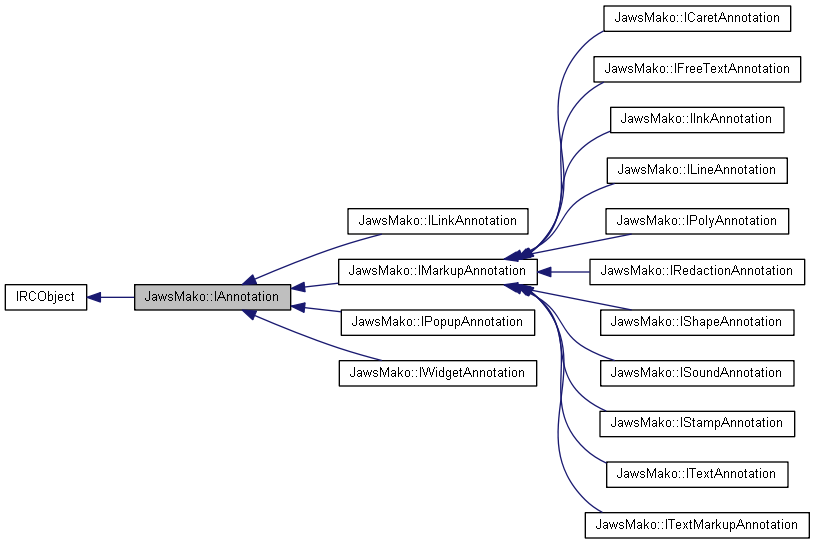

Mako relies on an inheritance model, whereby classes are derived from a parent class. Consider this inheritance diagram from the API documentation:

Sometimes it's necessary to cast an object into a related type, to access member variables or methods that would otherwise be unavailable.

For example, here the developer needed to cast an IAnnotation to an ITextAnnotation, so that the Author string is available.

C++

auto annots = page->getAnnotations();
for (uint8 i = 0; i < annots.size(); i++)
{
	ITextAnnotationPtr textAnnot = obj2ITextAnnotation(annots[i]);
	if (textAnnot && textAnnot->getAuthor() == "Arthur Smith")
		...
}

var annots = page.getAnnotations().toVector();
foreach(var annot in annots)
{
    var textAnnot = ITextAnnotation.fromRCObject(annot);
    if (textAnnot != null)
    {
        if (textAnnot.getAuthor() == "Arthur Smith")
            ...
    }
}

Java

var annots = page.getAnnotations().toVector();
for(var annot : annots)
{
    var textAnnot = ITextAnnotation.fromRCObject(annot);
    if (textAnnot != null)
    {
        if (textAnnot.getAuthor() == "Arthur Smith")
            ...
    }
}

Python

for annot in annots:
    text_annot: ITextAnnotation = ITextAnnotation.fromRCObject(annot)
    if text_annot is not None and text_annot.getAuthor() == 'Arthur Smith':
		...

If the cast fails, a null object is returned.

C#, Java and Python

These languages do not have the same inheritance model as C++, but the underlying Mako classes are the same as C++. For these, we have two methods that allow for the equivalent of a cast. They are fromRCObject() and toRCObject(). In the C# example above, toRCObject() is omitted, and can be in most cases, it simply provides a hint to the interpreter. The above example could also be written as shown here, and would work in the same way.

var textAnnot = ITextAnnotation.fromRCObject(annots[i].toRCObject());

C++

For C++, you can often rely on your IDE to suggest the right cast. Begin by typing 'edlobj2...' or 'obj2...'. However, the required header file may not be in scope; you can use the list below to find the cast you need, and the header file that defines it.

Classes from the EDL namespace (edlobj2)

Object	Code	Header File
`CColorManager`	`edlobj2CColorManager(src)`	cmm.cpp
`CDOMAnnotationAppearance`	`edlobj2CDOMAnnotationAppearance(src)`	domannotationappearance.h
`CDOMAnnotationAppearanceManager`	`edlobj2CDOMAnnotationAppearanceManager(src)`	domannotationappearance.h
`CDOMCatalog`	`edlobj2CDOMCatalog(src)`	domcatalog.h
`CDOMFixedPage`	`edlobj2CDOMFixedPage(src)`	dompage.h
`CDOMFontOpenType`	`edlobj2CDOMFontOpenType(src)`	domfontopentype.h
`CDOMFontPCL5`	`edlobj2CDOMFontPCL5(src)`	domfontpcl.h
`CDOMFontPCLXL`	`edlobj2CDOMFontPCLXL(src)`	domfontpcl.h
`CDOMForm`	`edlobj2CDOMForm(src)`	domform.h
`CDOMGlyphs`	`edlobj2CDOMGlyphs(src)`	domglyphs.h
`CDOMJobTk`	`edlobj2CDOMJobTk(src)`	domjobtk.h
`CDOMOpenTypeTT`	`edlobj2CDOMFontOpenTypeTT(src)`	domfonttruetype.h
`CDOMOutlineEntry`	`edlobj2CDOMOutlineEntry(src)`	domoutline.h
`CDOMOutlineTreeNode`	`edlobj2CDOMOutlineTreeNode(src)`	domoutline.h
`CDOMPageAnnotationManager`	`edlobj2CDOMPageAnnotationManager(src)`	domannotationmanager.h
`CDOMPointsListPathGeometry`	`edlobj2CDOMPointsListPathGeometry(src)`	dompath.h
`CEDLOutputFromEncryptedSourceMessage`	`edlobj2CEDLOutputFromEncryptedSourceMessage(src)`	cedloutputfromencryptedmessage.h
`CEDLXPSGetPageEvent`	`edlobj2CEDLXPSGetPageEvent(src)`	edlxpsgetpageevent.h
`CGDCGetMessage`	`edlobj2CGDCGetMessage(src)`	gdcxpsmessages.h
`ChecksummingOutputStream`	`edlobj2ChecksummingOutputStream(src)`	domfontpcl5.cpp
`CInputMemoryStream`	`edlobj2CInputMemoryStream(src)`	cinputmemorystream.h
`CPageContentsSizeAvailableMessage`	`edlobj2CPageContentsSizeAvailableMessage(src)`	pagecontentssizeavailable.h
`CPDFMetadataStorage`	`edlobj2CPDFMetadataStorage(src)`	pdfmetadata.h
`CPSExecStack`	`edlobj2CPSExecStack(src)`	cpsexec.h
`CPSObjectExec`	`edlobj2IPSObjectExec(src)`	cpsexec.h
`GlyphIDMappingStream`	`edlobj2GlyphIDMappingStream(src)`	pcl5_glyph.h
`IColorManager`	`edlobj2IColorManager(src)`	icolormanager.h
`IDOM`	`edlobj2IImageFrame(src)`	iimagecodec.h
`IDOM`	`edlobj2IDOM(src)`	idom.h
`IDOMActionArray`	`edlobj2IDOMActionArray(src)`	idomtarget.h
`IDOMActionLaunch`	`edlobj2IDOMActionLaunch(src)`	idomtarget.h
`IDOMAnnotation`	`edlobj2IDOMAnnotation(src)`	idomannotation.h
`IDOMAnnotationAppearance`	`edlobj2IDOMAnnotationAppearance(src)`	idomannotationappearance.h
`IDOMAnnotationAppearanceManager`	`edlobj2IDOMAnnotationAppearanceManager(src)`	idomannotationappearance.h
`IDOMAnnotationBorder`	`edlobj2IDOMAnnotationBorder(src)`	idomannotation.h
`IDOMAnnotationCaret`	`edlobj2IDOMAnnotationCaret(src)`	idomannotation.h
`IDOMAnnotationCircle`	`edlobj2IDOMAnnotationCircle(src)`	idomannotation.h
`IDOMAnnotationFileAttachment`	`edlobj2IDOMAnnotationFileAttachment(src)`	idomannotation.h
`IDOMAnnotationFreeText`	`edlobj2IDOMAnnotationFreeText(src)`	idomannotation.h
`IDOMAnnotationHighlight`	`edlobj2IDOMAnnotationHighlight(src)`	idomannotation.h
`IDOMAnnotationInk`	`edlobj2IDOMAnnotationInk(src)`	idomannotation.h
`IDOMAnnotationLine`	`edlobj2IDOMAnnotationLine(src)`	idomannotation.h
`IDOMAnnotationLink`	`edlobj2IDOMAnnotationLink(src)`	idomannotation.h
`IDOMAnnotationMarkup`	`edlobj2IDOMAnnotationMarkup(src)`	idomannotation.h
`IDOMAnnotationMarkupUnsupported`	`edlobj2IDOMAnnotationMarkupUnsupported(src)`	idomannotation.h
`IDOMAnnotationMovie`	`edlobj2IDOMAnnotationMovie(src)`	idomannotation.h
`IDOMAnnotationPoly`	`edlobj2IDOMAnnotationPoly(src)`	idomannotation.h
`IDOMAnnotationPolygon`	`edlobj2IDOMAnnotationPolygon(src)`	idomannotation.h
`IDOMAnnotationPolyLine`	`edlobj2IDOMAnnotationPolyLine(src)`	idomannotation.h
`IDOMAnnotationPopup`	`edlobj2IDOMAnnotationPopup(src)`	idomannotation.h
`IDOMAnnotationPrinterMark`	`edlobj2IDOMAnnotationPrinterMark(src)`	idomannotation.h
`IDOMAnnotationRedaction`	`edlobj2IDOMAnnotationRedaction(src)`	idomannotation.h
`IDOMAnnotationRichMedia`	`edlobj2IDOMAnnotationRichMedia(src)`	idomannotation.h
`IDOMAnnotationShape`	`edlobj2IDOMAnnotationShape(src)`	idomannotation.h
`IDOMAnnotationSound`	`edlobj2IDOMAnnotationSound(src)`	idomannotation.h
`IDOMAnnotationSquare`	`edlobj2IDOMAnnotationSquare(src)`	idomannotation.h
`IDOMAnnotationSquiggly`	`edlobj2IDOMAnnotationSquiggly(src)`	idomannotation.h
`IDOMAnnotationStamp`	`edlobj2IDOMAnnotationStamp(src)`	idomannotation.h
`IDOMAnnotationStrikeOut`	`edlobj2IDOMAnnotationStrikeOut(src)`	idomannotation.h
`IDOMAnnotationText`	`edlobj2IDOMAnnotationText(src)`	idomannotation.h
`IDOMAnnotationTextMarkup`	`edlobj2IDOMAnnotationTextMarkup(src)`	idomannotation.h
`IDOMAnnotationTrapNet`	`edlobj2IDOMAnnotationTrapNet(src)`	idomannotation.h
`IDOMAnnotationUnderline`	`edlobj2IDOMAnnotationUnderline(src)`	idomannotation.h
`IDOMAnnotationUnsupported`	`edlobj2IDOMAnnotationUnsupported(src)`	idomannotation.h
`IDOMAnnotationWatermark`	`edlobj2IDOMAnnotationWatermark(src)`	idomannotation.h
`IDOMAnnotationWidget`	`edlobj2IDOMAnnotationWidget(src)`	idomannotation.h
`IDOMAnnotationWidgetAppearanceCharacteristics`	`edlobj2IDOMAnnotationWidgetAppearanceCharacteristics(src)`	idomannotation.h
`IDOMArcSegment`	`edlobj2IDOMArcSegment(src)`	idompathgeometry.h
`IDOMAudioFile`	`edlobj2IDOMAudioFile(src)`	idomresources.h
`IDOMBrush`	`edlobj2IDOMBrush(src)`	idombrush.h
`IDOMCanvas`	`edlobj2IDOMCanvas(src)`	idomcanvas.h
`IDOMCatalog`	`edlobj2IDOMCatalog(src)`	idomcatalog.h
`IDOMCharPathGroup`	`edlobj2IDOMCharPathGroup(src)`	idomcharpathgroup.h
`IDOMColor`	`edlobj2IDOMColor(src)`	idomcolor.h
`IDOMColorSpace`	`edlobj2IDOMColorSpace(src)`	idomcolorspace.h
`IDOMColorSpaceDeviceCMY`	`edlobj2IDOMColorSpaceDeviceCMY(src)`	idomcolorspace.h
`IDOMColorSpaceDeviceCMYK`	`edlobj2IDOMColorSpaceDeviceCMYK(src)`	idomcolorspace.h
`IDOMColorSpaceDeviceGray`	`edlobj2IDOMColorSpaceDeviceGray(src)`	idomcolorspace.h
`IDOMColorSpaceDeviceN`	`edlobj2IDOMColorSpaceDeviceN(src)`	idomcolorspace.h
`IDOMColorSpaceDeviceRGB`	`edlobj2IDOMColorSpaceDeviceRGB(src)`	idomcolorspace.h
`IDOMColorSpaceICCBased`	`edlobj2IDOMColorSpaceICCBased(src)`	idomcolorspace.h
`IDOMColorSpaceIndexed`	`edlobj2IDOMColorSpaceIndexed(src)`	idomcolorspace.h
`IDOMColorSpaceLAB`	`edlobj2IDOMColorSpaceLAB(src)`	idomcolorspace.h
`IDOMColorSpacescRGB`	`edlobj2IDOMColorSpacescRGB(src)`	idomcolorspace.h
`IDOMColorSpacesGray`	`edlobj2IDOMColorSpacesGray(src)`	idomcolorspace.h
`IDOMColorSpacesRGB`	`edlobj2IDOMColorSpacesRGB(src)`	idomcolorspace.h
`IDOMCompositeImage`	`edlobj2IDOMCompositeImage(src)`	idomimageresource.h
`IDOMContentRoot`	`edlobj2IDOMContentRoot(src)`	idomcontent.h
`IDOMDePremultiplierFilter`	`edlobj2IDOMDePremultiplierFilter(src)`	idomimageresource.h
`IDOMDeviceNColorant`	`edlobj2IDOMDeviceNColorant(src)`	idomcolorspace.h
`IDOMDocument`	`edlobj2IDOMDocument(src)`	idomdocs.h
`IDOMDocumentSequence`	`edlobj2IDOMDocumentSequence(src)`	idomdocs.h
`IDOMExponentialFunction`	`edlobj2IDOMExponentialFunction(src)`	idomfunction.h
`IDOMExtAttr`	`edlobj2IDOMExtAttr(src)`	idomextattr.h
`IDOMExtAttrContainer`	`edlobj2IDOMExtAttrContainer(src)`	idomextattr.h
`IDOMExternalTarget`	`edlobj2IDOMExternalTarget(src)`	idomtarget.h
`IDOMFilteredImage`	`edlobj2IDOMFilteredImage(src)`	idomimageresource.h
`IDOMFixedDocument`	`edlobj2IDOMFixedDocument(src)`	idomdocs.h
`IDOMFixedPage`	`edlobj2IDOMFixedPage(src)`	idompage.h
`IDOMFont`	`edlobj2IDOMFont(src)`	idomfont.h
`IDOMFontOpenType`	`edlobj2IDOMFontOpenType(src)`	idomfont.h
`IDOMFontOpenTypeTT`	`edlobj2IDOMFontOpenTypeTT(src)`	idomfont.h
`IDOMFontPCL5`	`edlobj2IDOMFontPCL5(src)`	idomfontpcl.h
`IDOMFontPCLXL`	`edlobj2IDOMFontPCLXL(src)`	idomfontpcl.h
`IDOMFontSource`	`edlobj2IDOMFontSource(src)`	idomfont.h
`IDOMFontSourceFromStream`	`edlobj2IDOMFontSourceFromStream(src)`	idomfont.h
`IDOMFontSourceFromStream`	`edlobj2IDOMFontSourceObfuscationConverter(src)`	idomfont.h
`IDOMFontSourceStreamFilter`	`edlobj2IDOMFontSourceStreamFilter(src)`	idomfont.h
`IDOMForm`	`edlobj2IDOMForm(src)`	idomform.h
`IDOMFormInstance`	`edlobj2IDOMFormInstance(src)`	idomform.h
`IDOMFragment`	`edlobj2IDOMFragment(src)`	domfragment.h
`IDOMFunction`	`edlobj2IDOMFunction(src)`	idomfunction.h
`IDOMGlyph`	`edlobj2IDOMGlyph(src)`	idomglyph.h
`IDOMGlyphs`	`edlobj2IDOMGlyphs(src)`	idomglyphs.h
`IDOMGradientBrush`	`edlobj2IDOMGradientBrush(src)`	idombrush.h
`IDOMGradientStop`	`edlobj2IDOMGradientStop(src)`	idombrush.h
`IDOMGroup`	`edlobj2IDOMGroup(src)`	idomgroup.h
`IDOMGroupingFunction`	`edlobj2IDOMGroupingFunction(src)`	idomfunction.h
`IDOMHashable`	`edlobj2IDOMHashable(src)`	idomhashable.h
`IDOMICCProfile`	`edlobj2IDOMICCProfile(src)`	idomresources.h
`IDOMImage`	`edlobj2IDOMImage(src)`	idomimageresource.h
`IDOMImageBitScalerFilter`	`edlobj2IDOMImageBitScalerFilter(src)`	idomimageresource.h
`IDOMImageBleederFilter`	`edlobj2IDOMImageBleederFilter(src)`	idomimageresource.h
`IDOMImageBrush`	`edlobj2IDOMImageBrush(src)`	idombrush.h
`IDOMImageChannelSelectorFilter`	`edlobj2IDOMImageChannelSelectorFilter(src)`	idomimageresource.h
`IDOMImageColorConverterFilter`	`edlobj2IDOMImageColorConverterFilter(src)`	idomimageresource.h
`IDOMImageColorKeyFilter`	`edlobj2IDOMImageColorKeyFilter(src)`	idomimageresource.h
`IDOMImageColorSpaceSubstitutionFilter`	`edlobj2IDOMImageColorSpaceSubstitutionFilter(src)`	idomimageresource.h
`IDOMImageDecodeFilter`	`edlobj2IDOMImageDecodeFilter(src)`	idomimageresource.h
`IDOMImageDeindexerFilter`	`edlobj2IDOMImageDeindexerFilter(src)`	idomimageresource.h
`IDOMImageDeviceNToBaseFilter`	`edlobj2IDOMImageDeviceNToBaseFilter(src)`	idomimageresource.h
`IDOMImageDownsamplerFilter`	`edlobj2IDOMImageDownsamplerFilter(src)`	idomimageresource.h
`IDOMImageFilter`	`edlobj2IDOMImageFilter(src)`	idomimageresource.h
`IDOMImageInverterFilter`	`edlobj2IDOMImageInverterFilter(src)`	idomimageresource.h
`IDOMImageMaskExpanderFilter`	`edlobj2IDOMImageMaskExpanderFilter(src)`	idomimageresource.h
`IDOMImageMatteRemoverFilter`	`edlobj2IDOMImageMatteRemoverFilter(src)`	idomimageresource.h
`IDOMImageProperties`	`edlobj2IDOMImageProperties(src)`	idomimageresource.h
`IDOMInputFilter`	`edlobj2IDOMInputFilter(src)`	idominputfilter.h
`IDOMInternalTarget`	`edlobj2IDOMInternalTarget(src)`	idomtarget.h
`IDOMJobTk`	`edlobj2IDOMJobTk(src)`	idomjobtk.h
`IDOMJobTkContent`	`edlobj2IDOMJobTkContent(src)`	idomjobtk.h
`IDOMJobTkGenericCharacterData`	`edlobj2IDOMJobTkGenericCharacterData(src)`	idomjobtk.h
`IDOMJobTkGenericNode`	`edlobj2IDOMJobTkGenericNode(src)`	idomjobtk.h
`IDOMJobTkNode`	`edlobj2IDOMJobTkNode(src)`	idomjobtk.h
`IDOMJobTkOwner`	`edlobj2IDOMJobTkOwner(src)`	idomjobtk.h
`IDOMJobTkValue`	`edlobj2IDOMJobTkValue(src)`	idomjobtk.h
`IDOMJPEGImage`	`edlobj2IDOMJPEGImage(src)`	idomimageresource.h
`IDOMLinearGradientBrush`	`edlobj2IDOMLinearGradientBrush(src)`	idombrush.h
`IDOMMaskedBrush`	`edlobj2IDOMMaskedBrush(src)`	idombrush.h
`IDOMMatrix`	`edlobj2IDOMMatrix(src)`	idomresources.h
`IDOMMCElement`	`edlobj2IDOMMCElement(src)`	idommc.h
`IDOMMetadata`	`edlobj2IDOMMetadata(src)`	idommetadata.h
`IDOMNode`	`edlobj2IDOMNode(src)`	idomnode.h
`IDOMNodeRel`	`edlobj2IDOMNodeRel(src)`	idomnoderel.h
`IDOMNodeRelContainer`	`edlobj2IDOMNodeRelContainer(src)`	idomnoderel.h
`IDOMNullBrush`	`edlobj2IDOMNullBrush(src)`	idombrush.h
`IDOMOptionalContent`	`edlobj2IDOMOptionalContent(src)`	idomopt.h
`IDOMOptionalContentGroup`	`edlobj2IDOMOptionalContentGroup(src)`	idomopt.h
`IDOMOptionalContentMembership`	`edlobj2IDOMOptionalContentMembership(src)`	idomopt.h
`IDOMOutline`	`edlobj2IDOMOutline(src)`	idomoutline.h
`IDOMOutlineEntry`	`edlobj2IDOMOutlineEntry(src)`	idomoutline.h
`IDOMOutlineTree`	`edlobj2IDOMOutlineTree(src)`	idomoutline.h
`IDOMOutlineTreeNode`	`edlobj2IDOMOutlineTreeNode(src)`	idomoutline.h
`IDOMOutputFilter`	`edlobj2IDOMOutputFilter(src)`	idomoutputfilter.h
`IDOMPageAnnotationManager`	`edlobj2IDOMPageAnnotationManager(src)`	idomannotationmanager.h
`IDOMPageLinkManager`	`edlobj2IDOMPageLinkManager(src)`	idomlinkmanager.h
`IDOMPageRectTarget`	`edlobj2IDOMPageRectTarget(src)`	idomtarget.h
`IDOMPageTarget`	`edlobj2IDOMPageTarget(src)`	idomtarget.h
`IDOMPathFigure`	`edlobj2IDOMPathFigure(src)`	idompathgeometry.h
`IDOMPathGeometry`	`edlobj2IDOMPathGeometry(src)`	idompathgeometry.h
`IDOMPathNode`	`edlobj2IDOMPathNode(src)`	idompath.h
`IDOMPathSegment`	`edlobj2IDOMPathSegment(src)`	idompathgeometry.h
`IDOMPCLImage`	`edlobj2IDOMPCLImage(src)`	idomimageresource.h
`IDOMPDFImage`	`edlobj2IDOMPDFImage(src)`	idomimageresource.h
`IDOMPDFSecurityInfo`	`edlobj2IDOMPDFSecurityInfo(src)`	idomsecurity.h
`IDOMPNGImage`	`edlobj2IDOMPNGImage(src)`	idomimageresource.h
`IDOMPolyBezierSegment`	`edlobj2IDOMPolyBezierSegment(src)`	idompathgeometry.h
`IDOMPolyLineSegment`	`edlobj2IDOMPolyLineSegment(src)`	idompathgeometry.h
`IDOMPolyQuadraticBezierSegment`	`edlobj2IDOMPolyQuadraticBezierSegment(src)`	idompathgeometry.h
`IDOMPostScriptCalculatorFunction`	`edlobj2IDOMPostScriptCalculatorFunction(src)`	idomfunction.h
`IDOMPrintTicket`	`edlobj2IDOMPrintTicket(src)`	idomresources.h
`IDOMRadialGradientBrush`	`edlobj2IDOMRadialGradientBrush(src)`	idombrush.h
`IDOMRawDataFile`	`edlobj2IDOMRawDataFile(src)`	idomresources.h
`IDOMRawImage`	`edlobj2IDOMRawImage(src)`	idomimageresource.h
`IDOMRecombineAlphaImage`	`edlobj2IDOMRecombineAlphaImage(src)`	idomimageresource.h
`IDOMRecombineImage`	`edlobj2IDOMRecombineImage(src)`	idomimageresource.h
`IDOMRefNode`	`edlobj2IDOMRefNode(src)`	idomrefnode.h
`IDOMResource`	`edlobj2IDOMResource(src)`	idomresources.h
`IDOMResourceDictionary`	`edlobj2IDOMResourceDictionary(src)`	idomresources.h
`IDOMSampledFunction`	`edlobj2IDOMSampledFunction(src)`	idomfunction.h
`IDOMSecurityInfo`	`edlobj2IDOMSecurityInfo(src)`	idomsecurity.h
`IDOMSeqReader`	`edlobj2IDOMSeqReader(src)`	idomiterator.h
`IDOMSeqRefWriter`	`edlobj2IDOMSeqRefWriter(src)`	idomiterator.h
`IDOMSeqWriter`	`edlobj2IDOMSeqWriter(src)`	idomiterator.h
`IDOMShadingPatternBrush`	`edlobj2IDOMShadingPatternBrush(src)`	idombrush.h
`IDOMShadingPatternType1Brush`	`edlobj2IDOMShadingPatternType1Brush(src)`	idombrush.h
`IDOMShadingPatternType2Brush`	`edlobj2IDOMShadingPatternType2Brush(src)`	idombrush.h
`IDOMShadingPatternType3Brush`	`edlobj2IDOMShadingPatternType3Brush(src)`	idombrush.h
`IDOMShadingPatternType4567Brush`	`edlobj2IDOMShadingPatternType4567Brush(src)`	idombrush.h
`IDOMShape`	`edlobj2IDOMShape(src)`	idomshape.h
`IDOMSoftMaskBrush`	`edlobj2IDOMSoftMaskBrush(src)`	idombrush.h
`IDOMSolidColorBrush`	`edlobj2IDOMSolidColorBrush(src)`	idombrush.h
`IDOMStandardPDFSecurityInfo`	`edlobj2IDOMStandardPDFSecurityInfo(src)`	idomsecurity.h
`IDOMStitchingFunction`	`edlobj2IDOMStitchingFunction(src)`	idomfunction.h
`IDOMTarget`	`edlobj2IDOMTarget(src)`	idomtarget.h
`IDOMTIFFImage`	`edlobj2IDOMTIFFImage(src)`	idomimageresource.h
`IDOMTile`	`edlobj2IDOMTile(src)`	domfragment.h
`IDOMTilingPatternBrush`	`edlobj2IDOMTilingPatternBrush(src)`	idombrush.h
`IDOMTransformableBrush`	`edlobj2IDOMTransformableBrush(src)`	idombrush.h
`IDOMTransparencyGroup`	`edlobj2IDOMTransparencyGroup(src)`	idomgroup.h
`IDOMType3Font`	`edlobj2IDOMType3Font(src)`	idomfont.h
`IDOMVisualBrush`	`edlobj2IDOMVisualBrush(src)`	idombrush.h
`IDOMVisualRoot`	`edlobj2IDOMVisualRoot(src)`	idombrush.h
`IDOMWMPImage`	`edlobj2IDOMWMPImage(src)`	idomimageresource.h
`IEDLNamespace`	`edlobj2IEDLNamespace(src)`	edlqname.h
`IEDLOutputFromEncryptedSourceMessage`	`edlobj2IEDLOutputFromEncryptedSourceMessage(src)`	iedloutputfromencryptedsourcemessage.h
`IEDLStream`	`edlobj2IEDLStream(src)`	edlstream.h
`IEDLTempStore`	`edlobj2IEDLTempStore(src)`	iedltempstore.h
`IEDLTime`	`edlobj2IEDLTime(src)`	edltime.h
`IFileSpec`	`edlobj2IFileSpec(src)`	ifilespec.h
`IFileSpecAsEmbeddedData`	`edlobj2IFileSpecAsEmbeddedData(src)`	ifilespec.h
`IFileSpecAsFileReference`	`edlobj2IFileSpecAsFileReference(src)`	ifilespec.h
`IFileSpecAsUrl`	`edlobj2IFileSpecAsUrl(src)`	ifilespec.h
`IFilter`	`edlobj2IFilter(src)`	ifilter.h
`IFilterContext`	`edlobj2IFilterContext(src)`	ifilter.h
`IFilterParams`	`edlobj2IIFilterParams(src)`	ifilterparams.h
`IFilterPipeline`	`edlobj2IFilterPipeline(src)`	ifilter.h
`IFilterProperties`	`edlobj2IFilterProperties(src)`	ifilterproperties.h
`IFontHeaderWriteSegmentBlockEnumerator`	`edlobj2IFontHeaderWriteSegmentBlockEnumerator(src)`	idomfontpcl.h
`IFontLibrary`	`edlobj2IFontLibrary(src)`	libfont.h
`IFontOpenTypeTableAccessor`	`edlobj2IFontOpenTypeTableAccessor(src)`	idomfont.h
`IFontPCL5TrueTypeGlyphAccessor`	`edlobj2IFontPCL5TrueTypeGlyphAccessor(src)`	idomfontpcl.h
`IFontPCL5WriteSegmentBlockEnumerator`	`edlobj2IFontPCL5WriteSegmentBlockEnumerator(src)`	idomfontpcl.h
`IFontPCLXLTrueTypeGlyphAccessor`	`edlobj2IFontPCLXLTrueTypeGlyphAccessor(src)`	idomfontpcl.h
`IFontTrueTypeGlyphAccessor`	`edlobj2IFontTrueTypeGlyphAccessor(src)`	idomfont.h
`IGenericFilter`	`edlobj2IGenericFilter(src)`	igenericfilter.h
`IInputPushbackStream`	`edlobj2IInputPushbackStream(src)`	edlstream.h
`IInputStream`	`edlobj2IInputStream(src)`	edlstream.h
`IOutputStream`	`edlobj2IOutputStream(src)`	edlstream.h
`IRAInputOutputStream`	`edlobj2IRAInputOutputStream(src)`	edlstream.h
`IRAInputPushbackStream`	`edlobj2IRAInputPushbackStream(src)`	edlstream.h
`IRAInputStream`	`edlobj2IRAInputStream(src)`	edlstream.h
`IRAOutputStream`	`edlobj2IRAOutputStream(src)`	edlstream.h
`IRunnable`	`edlobj2IRunnable(src)`	isession.h
`ISession`	`edlobj2ISession(src)`	isession.h
`IXPSInFilter`	`edlobj2IXPSInFilter(src)`	ixpsin.h
`IXPSRandomAccessProvider`	`edlobj2IXPSRandomAccessProvider(src)`	ixpsprovider.h
`IXPSStreamProvider`	`edlobj2IXPSStreamProvider(src)`	ixpsprovider.h

Objects without an EDL prefix (obj2)

Object	Code	Header File
`CAnnotationReference`	`obj2CAnnotationReference(obj)`	pdfobjects.h
`CCITTFaxParams`	`obj2CCITTFaxParams(obj)`	idomimageresource.h
`CDomFormDvInstance`	`obj2CDomFormDvInstance(obj)`	domdv.h
`CDomPatternDvInstance`	`obj2CDomPatternDvInstance(obj)`	domdv.h
`CDomType3GlyphDvInstance`	`obj2CDomType3GlyphDvInstance(obj)`	domdv.h
`COptionalContentGroupReference`	`obj2COptionalContentGroupReference(obj)`	pdfobjects.h
`CPageLayout`	`obj2CPageLayout(obj)`	pagelayout.cpp
`CPcl5Font`	`obj2CPcl5Font(obj)`	makofonts.cpp
`CStructureElementReference`	`obj2CStructureElementReference(obj)`	pdfobjects.h
`CStructureElementReferenceChild`	`obj2CStructureElementReferenceChild(obj)`	pdfobjects-structure.cpp
`CStructureMarkedContentReferenceChild`	`obj2CStructureMarkedContentReferenceChild(obj)`	pdfobjects-structure.cpp
`CStructureObjectReferenceChild`	`obj2CStructureObjectReferenceChild(obj)`	pdfobjects-structure.cpp
`DCTParams`	`obj2DCTParams(obj)`	idomimageresource.h
`FlateLZWParams`	`obj2FlateLZWParams(obj)`	idomimageresource.h
`IAnnotationPrivate`	`obj2IAnnotationPrivate(obj)`	pdfobjects.h
`ICaretAnnotation`	`obj2ICaretAnnotation(obj)`	interactive.h
`IDomDvAnnotationAppearanceState`	`obj2IDomDvAnnotationAppearanceState(obj)`	domdv.h
`IDomDvClipState`	`obj2IDomDvClipState(obj)`	domdv.h
`IDomDvGState`	`obj2IDomDvGState(obj)`	domdv.h
`IDomDvMarkedContentState`	`obj2IDomDvMarkedContentState(obj)`	domdv.h
`IDomDvTextState`	`obj2IDomDvTextState(obj)`	domdv.h
`IDomDvTransGroupState`	`obj2IDomDvTransGroupState(obj)`	domdv.h
`IDomDvType3Font`	`obj2IDomDvType3Font(obj)`	domdv.h
`IFormFieldPrivate`	`obj2IFormFieldPrivate(obj)`	pdfobjects.h
`IFormPrivate`	`obj2IFormPrivate(obj)`	pdfobjects.h
`IFreeTextAnnotation`	`obj2IFreeTextAnnotation(obj)`	interactive.h
`IInkAnnotation`	`obj2IInkAnnotation(obj)`	interactive.h
`ILineAnnotation`	`obj2ILineAnnotation(obj)`	interactive.h
`ILinkAnnotation`	`obj2ILinkAnnotation(obj)`	interactive.h
`IMarkedContentArtifactDetails`	`obj2IMarkedContentArtifactDetails(obj)`	structure.h
`IMarkedContentStructureDetails`	`obj2IMarkedContentStructureDetails(obj)`	structure.h
`IMarkupAnnotation`	`obj2IMarkupAnnotation(obj)`	interactive.h
`INamedDestinationPrivate`	`obj2INamedDestinationPrivate(obj)`	pdfobjects.h
`IOptionalContentPrivate`	`obj2IOptionalContentPrivate(obj)`	pdfobjects.h
`IPcl5BitmapFont`	`obj2IPcl5BitmapFont(obj)`	makofontspriv.h
`IPCL5Input`	`obj2IPCL5Input(obj)`	pcl5input.h
`IPCL5Output`	`obj2IPCL5Output(obj)`	pcl5output.h
`IPcl5SoftFont`	`obj2IPcl5SoftFont(obj)`	makofontspriv.h
`IPCLXLInput`	`obj2IPCLXLInput(obj)`	pclxlinput.h
`IPCLXLOutput`	`obj2IPCLXLOutput(obj)`	pclxloutput.h
`IPDFArray`	`obj2IPDFArray(obj)`	pdfobjects.h
`IPDFBoolean`	`obj2IPDFBoolean(obj)`	pdfobjects.h
`IPDFDictionary`	`obj2IPDFDictionary(obj)`	pdfobjects.h
`IPDFFarReference`	`obj2IPDFFarReference(obj)`	pdfobjects.h
`IPDFInput`	`obj2IPDFInput(obj)`	pdfinput.h
`IPDFInteger`	`obj2IPDFInteger(obj)`	pdfobjects.h
`IPDFName`	`obj2IPDFName(obj)`	pdfobjects.h
`IPDFNull`	`obj2IPDFNull(obj)`	pdfobjects.h
`IPDFObject`	`obj2IPDFObject(obj)`	pdfobjects.h
`IPDFObjectsWrapper`	`obj2IPDFObjectsWrapper(obj)`	pdfobjects.h
`IPDFOperator`	`obj2IPDFOperator(obj)`	pdfobjects.h
`IPDFOutput`	`obj2IPDFOutput(obj)`	pdfoutput.h
`IPDFReal`	`obj2IPDFReal(obj)`	pdfobjects.h
`IPDFReference`	`obj2IPDFReference(obj)`	pdfobjects.h
`IPDFStream`	`obj2IPDFStream(obj)`	pdfobjects.h
`IPDFString`	`obj2IPDFString(obj)`	pdfobjects.h
`IPJLParser`	`obj2IPJLParser(obj)`	pjl.h
`IPolyAnnotation`	`obj2IPolyAnnotation(obj)`	interactive.h
`IPopupAnnotation`	`obj2IPopupAnnotation(obj)`	interactive.h
`IPSInput`	`obj2IPSInput(obj)`	psinput.h
`IPSOutput`	`obj2IPSOutput(obj)`	psoutput.h
`IRedactionAnnotation`	`obj2IRedactionAnnotation(obj)`	interactive.h
`IShapeAnnotation`	`obj2IShapeAnnotation(obj)`	interactive.h
`ISoundAnnotation`	`obj2ISoundAnnotation(obj)`	interactive.h
`IStampAnnotation`	`obj2IStampAnnotation(obj)`	interactive.h
`IStructureElementPrivate`	`obj2IStructureElementPrivate(obj)`	pdfobjects.h
`IStructureElementReferenceChild`	`obj2IStructureElementReferenceChild(obj)`	structure.h
`IStructureMarkedContentReference`	`obj2IStructureMarkedContentReference(obj)`	structure.h
`IStructureMarkedContentReferenceChildPrivate`	`obj2IStructureMarkedContentReferenceChildPrivate(obj)`	pdfobjects.h
`IStructureObjectReferenceChild`	`obj2IStructureObjectReferenceChild(obj)`	structure.h
`IStructureObjectReferenceChildPrivate`	`obj2IStructureObjectReferenceChildPrivate(obj)`	pdfobjects.h
`IStructurePrivate`	`obj2IStructurePrivate(obj)`	pdfobjects.h
`ITextAnnotation`	`obj2ITextAnnotation(obj)`	interactive.h
`ITextMarkupAnnotation`	`obj2ITextMarkupAnnotation(obj)`	interactive.h
`IWidgetAnnotation`	`obj2IWidgetAnnotation(obj)`	interactive.h
`IXPSFixedDocumentPart`	`obj2IXPSFixedDocumentPart(obj)`	xpspackage.h
`IXPSFixedPagePart`	`obj2IXPSFixedPagePart(obj)`	xpspackage.h
`IXPSInput`	`obj2IXPSInput(obj)`	xpsinput.h
`IXPSOutput`	`obj2IXPSOutput(obj)`	xpsoutput.h
`JBIG2Params`	`obj2JBIG2Params(obj)`	idomimageresource.h
